X-Type (X400) V6-3.0L (2002)

Page 7
background image

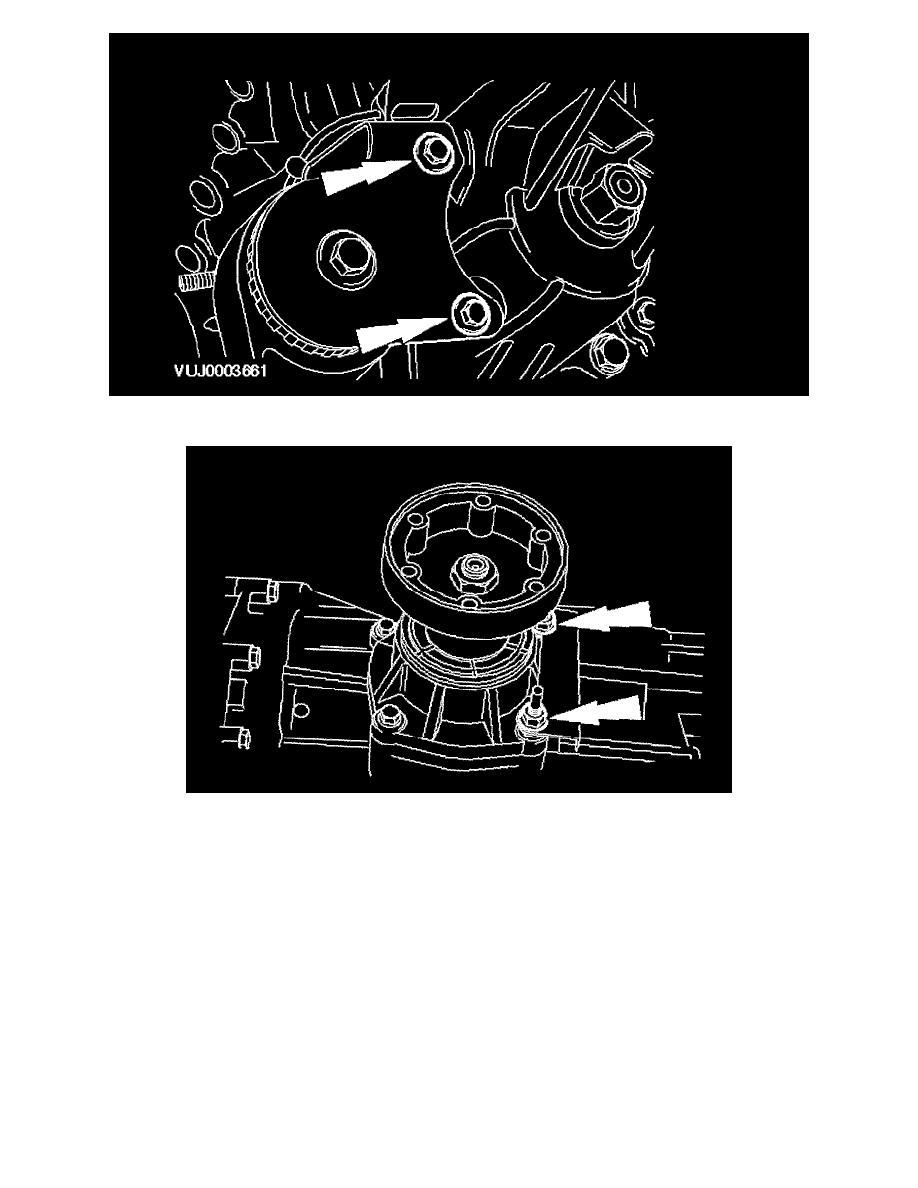

9. Remove the transfer case mounting bracket side retaining bolts.

10. Remove the transfer case mounting bracket bottom retaining nuts.
