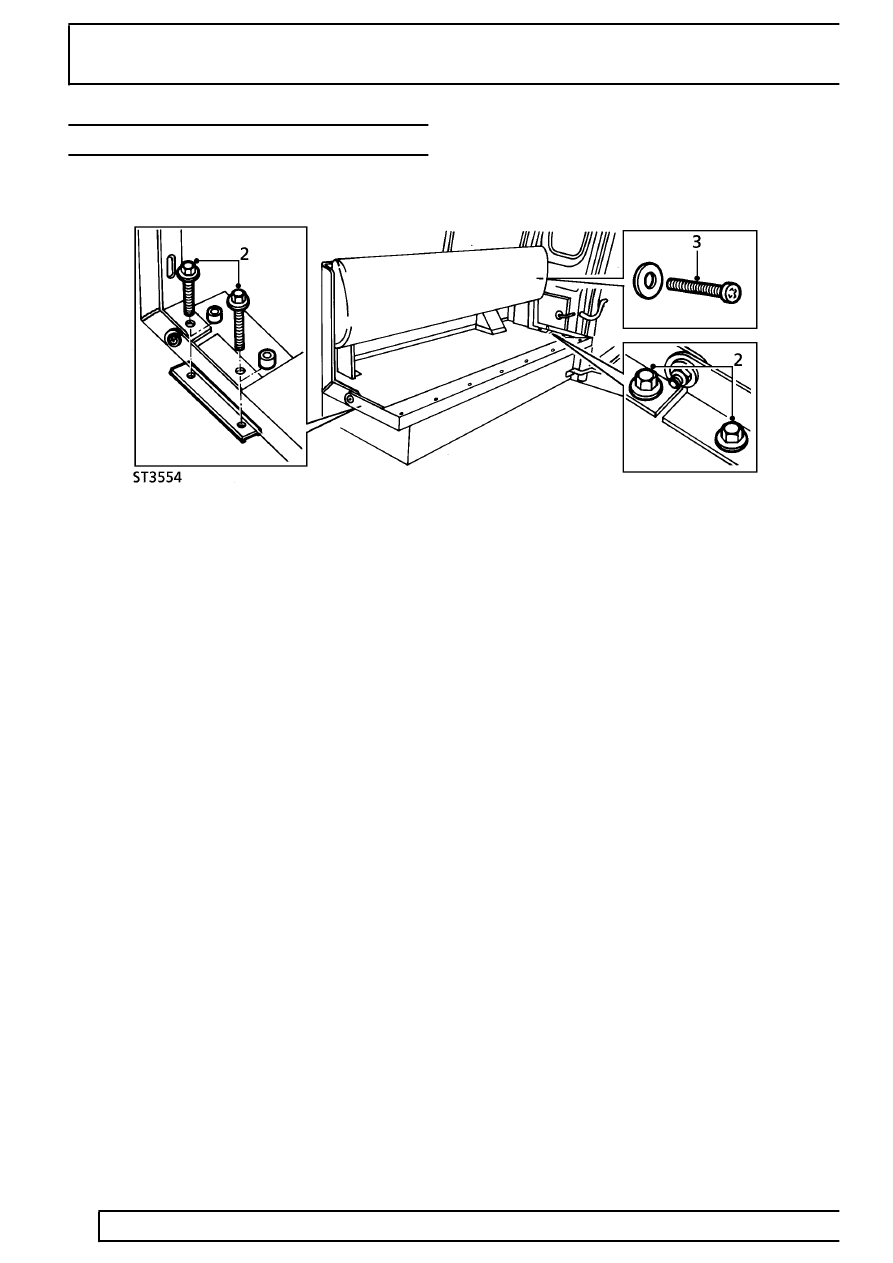

REAR BENCH SEAT
Service repair no - 78.10.57/99
Remove
1. Remove rear bench seat cushion.
2. Remove 4 bolts securing seat frame to body and
collect spacers and brackets containing captive
nuts.
3. Remove screw securing rear end of squab to
body.
4. Remove rear bench seat.
Refit
5. Position rear bench seat to body.
6. Position bracket and spacers, and loosely fit
bolts securing front end of cushion frame to
body.
7. Loosely fit bolts securing rear end of cushion
frame to body while second person holds
bracket in position from under vehicle.
8. Fit screw securing squab to body.Tighten to
10
Nm (7 lbf/ft).
9. Tighten cushion frame to body bolts to
10 Nm (7
lbf/ft).
10. Fit bench seatcushion.
