Freelander Service Procedures
ENGINE - K SERIES KV6
12-3-46 REPAIRS
Engine mounting - LH
$% 12.45.11
Remove
1. Remove engine acoustic cover.
ENGINE - K SERIES KV6, REPAIRS,
2. Remove battery carrier.

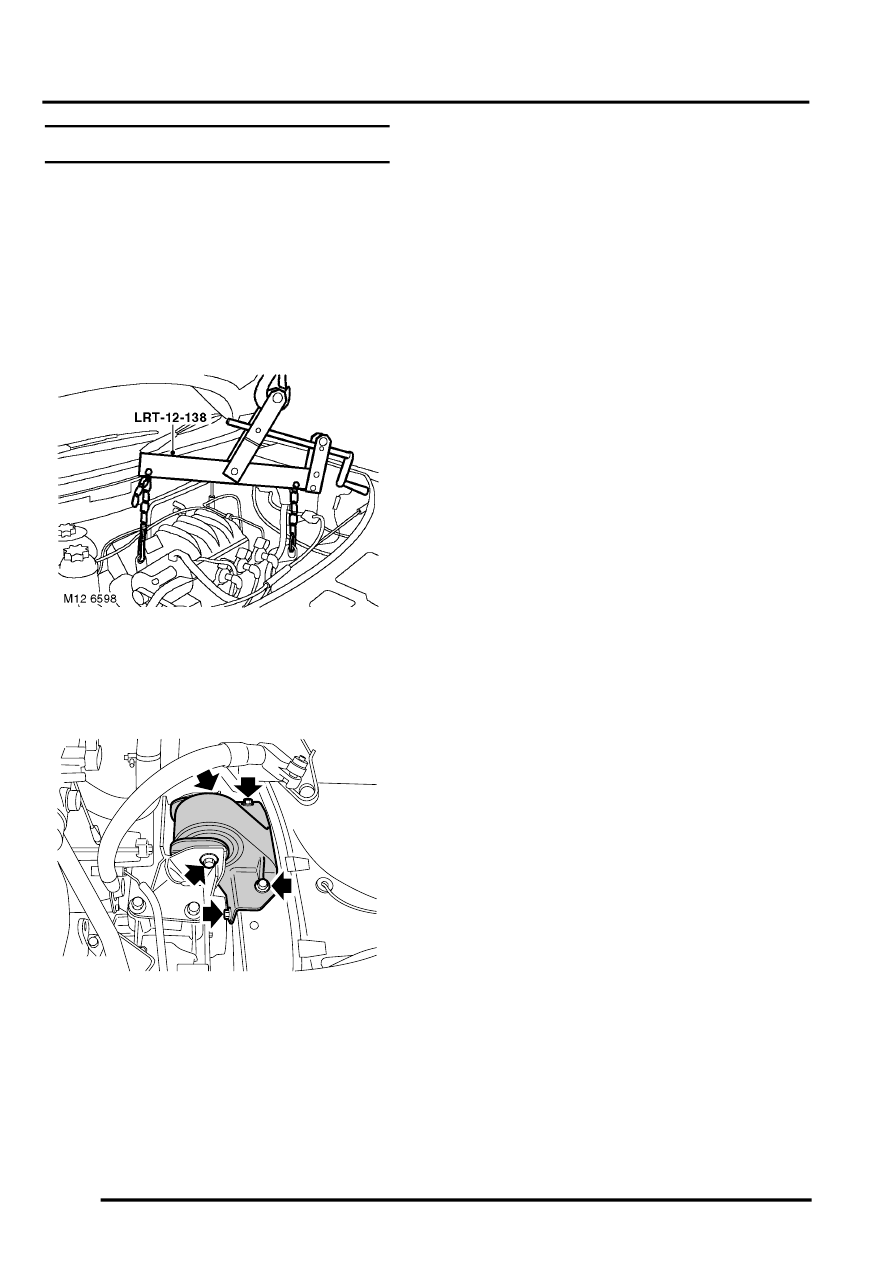

3. Using a hoist, connect adjustable lifting
bracket, LRT-12-138 to engine.
4. Raise hoist to take weight without exerting any
load on the engine mountings.
5. Remove through bolt securing LH engine
mounting to gearbox bracket.
6. Remove 4 bolts securing LH mounting to body
and remove mounting.
Refit
1. Position LH mounting to body, fit and tighten
bolts to 48 Nm (35 lbf.ft).
2. Align gearbox bracket to LH body mounting, fit
and tighten through bolt to 100 Nm (74 lbf.ft).
3. Lower hoist, disconnect and remove lifting
bracket, LRT-12-138.
4. Fit battery carrier.
5. Fit engine acoustic cover.
ENGINE - K SERIES KV6, REPAIRS,
M12 6599
