Freelander Service Procedures
WIPERS AND WASHERS
84-4
REPAIRS

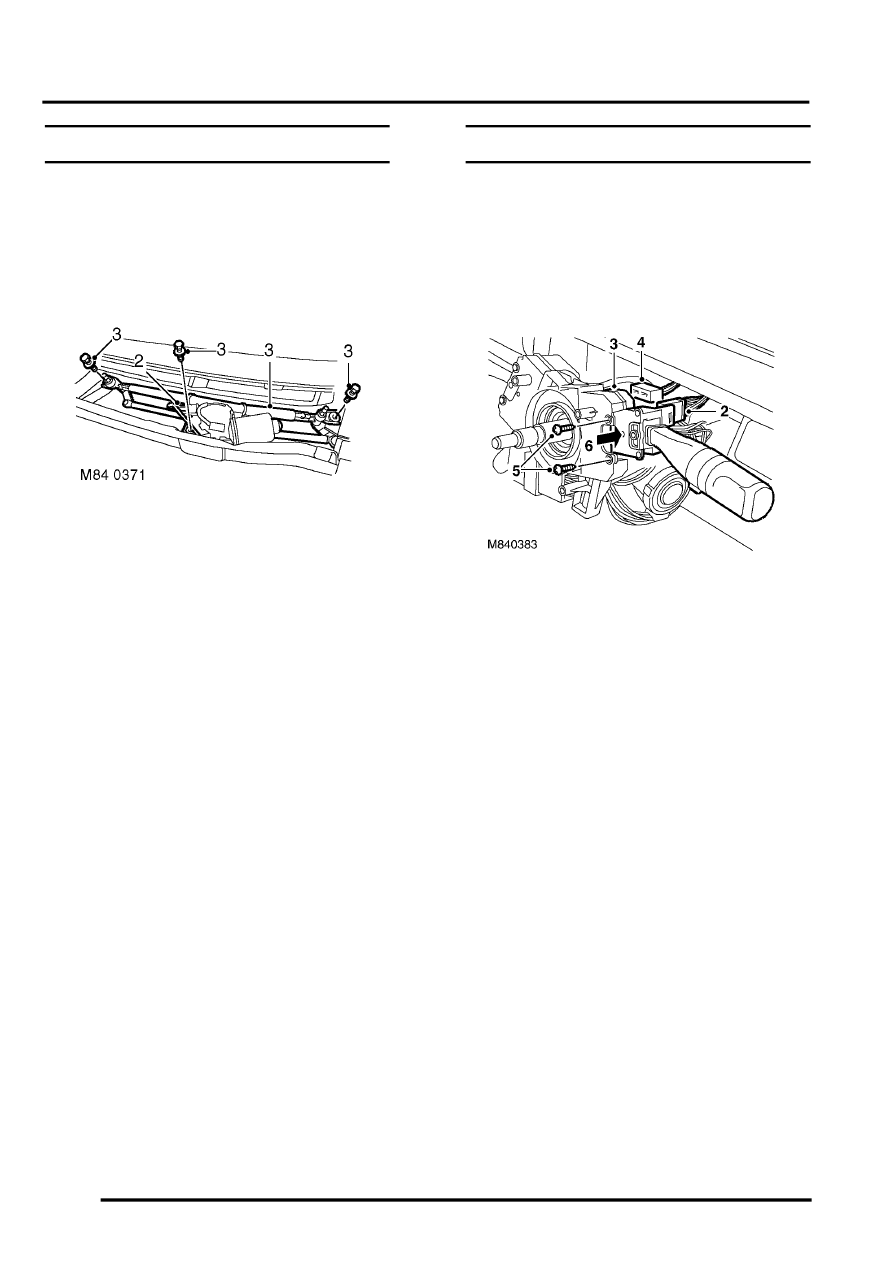

Motor & linkage - wiper
$% 84.15.11
Remove
1. Remove air intake moulding.
2. Disconnect multiplug from windscreen wiper
motor.
3. Remove 3 bolts securing wiper motor and
linkage to body and remove wiper motor and
linkage.
Refit
1. Fit motor and linkage to body, fit bolts and
tighten to 5 Nm (3.5 lbf.ft).
2. Connect multiplug to windscreen wiper motor.
3. Fit air intake moulding.
Switch - wiper/washer
$% 84.15.34
Remove
1. Remove rotary coupler.
Rotary coupler - (SRS) air bag system.
2. Disconnect multiplug from washer and wiper
switch.
3. Release multiplug connector from switch base
on steering column.
4. Disconnect multiplug from connector.
5. Remove 2 screws from wiper switch.
6. Depress retaining tag and remove switch.
Refit
1. Fit washer and wiper switch assembly and
secure with screws.
2. Connect multiplugs to switch.
3. Secure multiplug to steering column.
4. Fit rotary coupler.
