Freelander Service Procedures
WIPERS AND WASHERS
REPAIRS
84-5

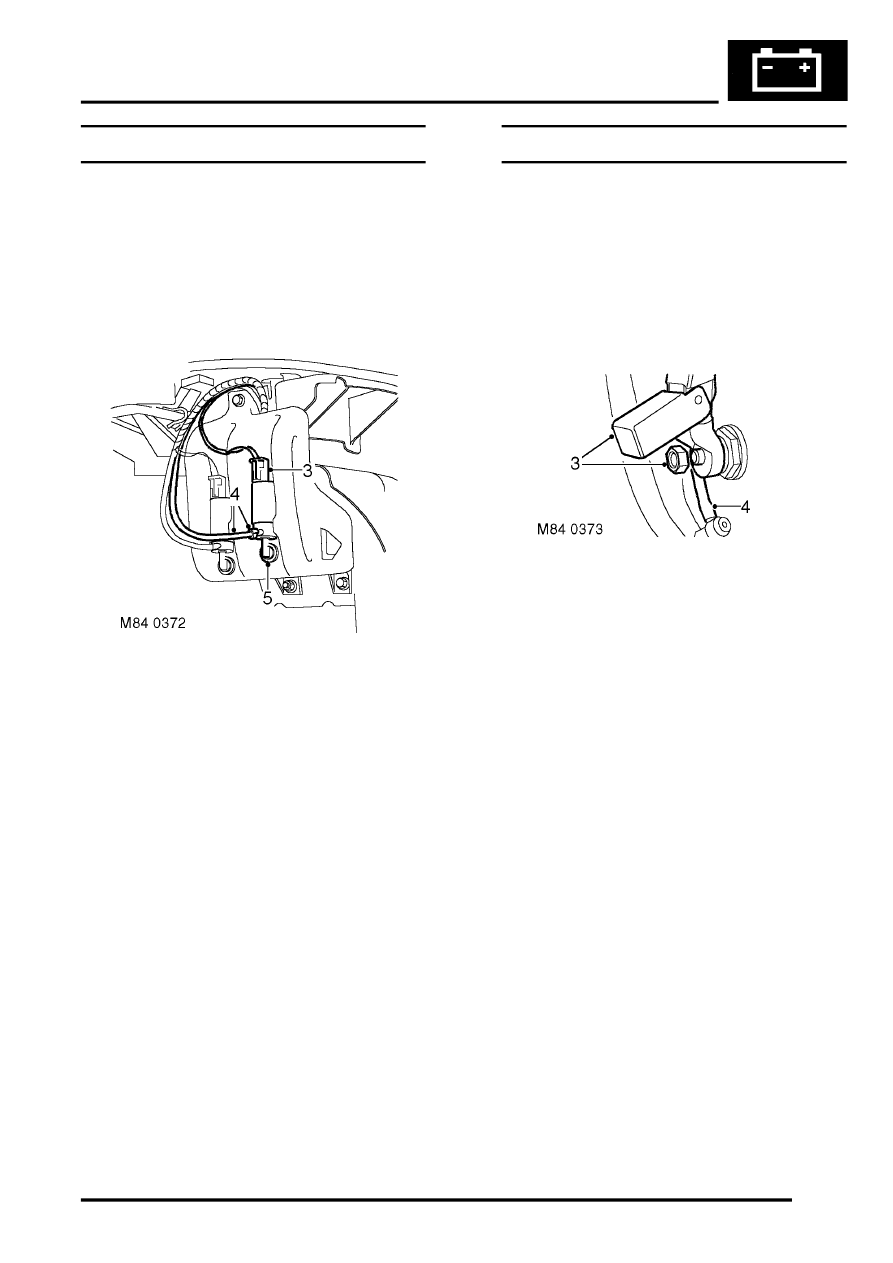

Pump - washer
$% 84.30.21
Remove
1. Remove front bumper.
Bumper - assembly - front - up to 04MY.
2. Position container to catch windscreen washer
fluid.
3. Disconnect multiplug from washer pump.
4. Release hose from pump.
5. Remove washer pump from reservoir and
remove and discard pump seal.
Refit
1. Fit new pump sealing grommet to reservoir.
2. Fit pump to reservoir.
3. Connect hose and multiplug to pump.
4. Fit front bumper.
Bumper - assembly - front - up to 04MY.
Arm - wiper
$% 84.35.01
Remove
1. Remove wiper blade.
2. Remove spare wheel mounting bracket.
Bracket - spare wheel mounting.
3. Raise nut cover on wiper arm and remove nut.
4. Release washer jet tube and remove wiper
arm.
NOTE: Do not carry out further dismantling if
component is removed for access only.
5. Release washer jet and washer jet tube from
wiper arm.
Refit
1. Position and secure washer tube and jet to
wiper arm.
2. Position wiper arm to tail door and connect
washer tube.
3. Set wiper arm with tip contacting joint line
between waist seal and rear door. Fit and
tighten wiper arm nut to 13 Nm (10 lbf.ft).
4. Fit wiper blade.
5. Fit spare wheel mounting bracket.
