L322 Range Rover Service Procedures
AIR CONDITIONING
REPAIRS
82-7

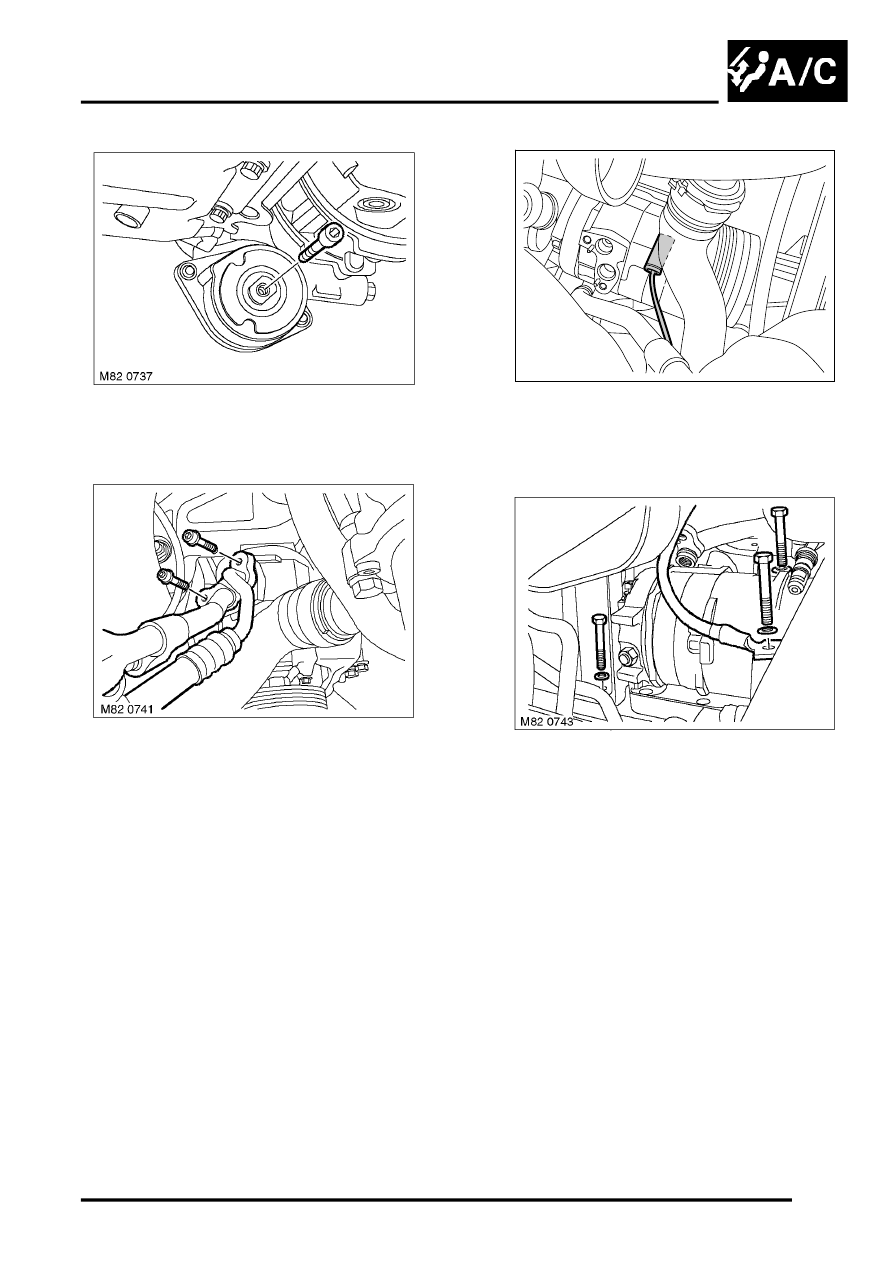

7. Remove Allen bolt securing pulley arm to
spring tensioner, withdraw arm assembly.
8. Remove 2 bolts securing A/C pipes to
compressor. Release pipes from compressor.
CAUTION: Always fit plugs to open
connections to prevent contamination.
9. Remove and discard 'O' rings from A/C pipes.
10. Remove bolt securing intercooler hose support
bracket to compressor and move aside.
11. Disconnect multiplug from compressor.
12. Remove bolt securing compressor earth lead,
move lead aside.
13. Remove bolt securing rear of compressor to
mounting, release compressor from dowels
and remove from vehicle.
Refit
1. If a new compressor is being installed, drain the
required amount of refrigerant oil from the new
compressor.
Conditioning System Precautions.
2. Ensure mating faces of A/C pipes and
compressor are clean.
3. Clean compressor and mounting bracket
mating faces.
4. Ensure rear bolt is fitted to compressor, locate
compressor onto dowels and finger tighten bolt.
5. Fit bolt and intercooler support bracket to
compressor.
6. Fit bolt and secure compressor earth lead.
M82 0742
