L322 Range Rover Service Procedures
ENGINE - V8
12-2-42 REPAIRS

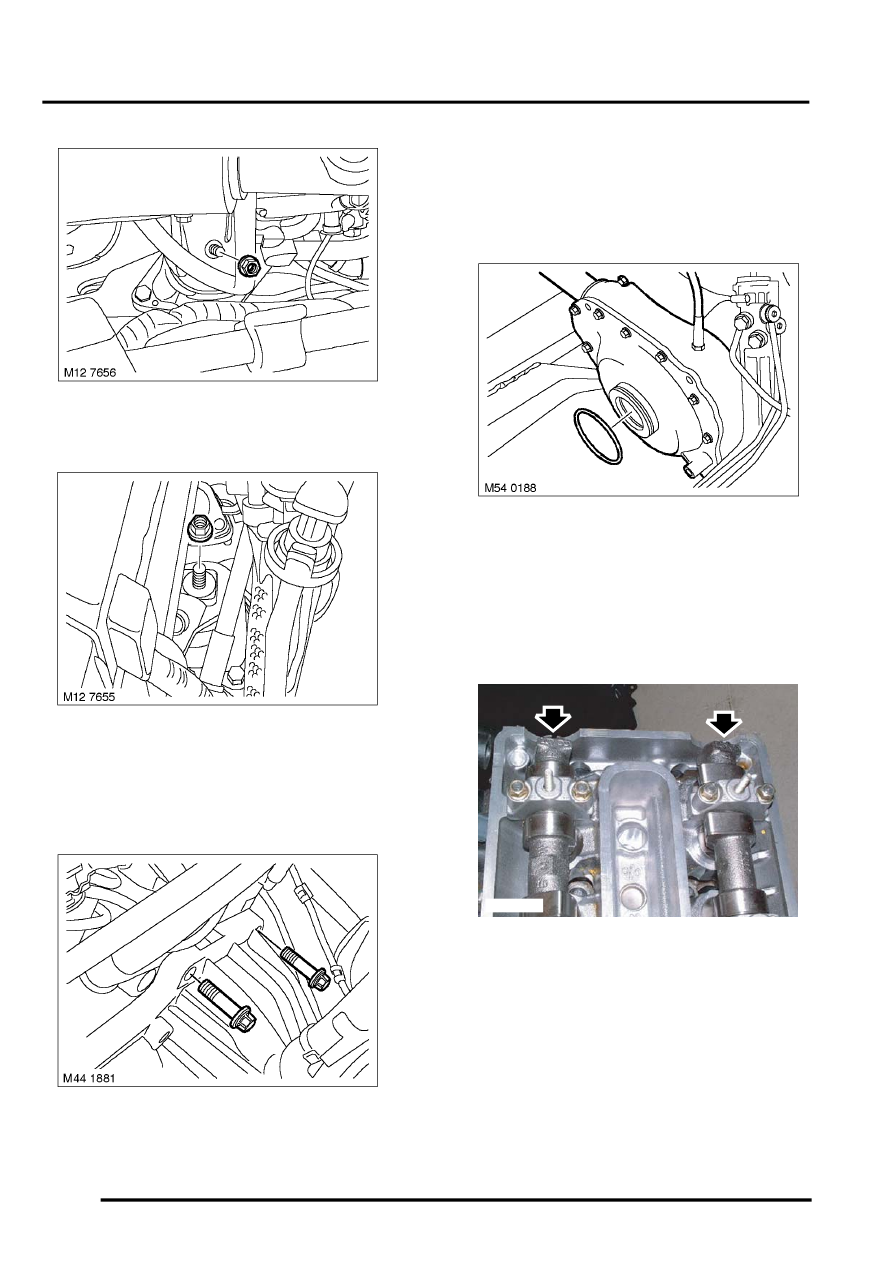

79. Remove nut securing RH engine mounting to
engine mounting bracket.
80. Remove nut securing LH engine mounting to
engine mounting bracket.
81. Connect chain to lifting bracket and take weight
of engine.
82. Raise engine clear of mountings.
83. Remove 2 Torx bolts from top of bell housing.
84. Release engine from dowels, carefully raise
and guide engine clear of vehicle.
CAUTION: To prevent damage to the
radiator, do not allow engine to contact the
radiator.
85. Discard differential 'O' ring.
Refit
Procedure for fitting crankshaft dowel to a
replacement engine, steps 1 - 10 only:
1. Remove RH camshaft cover gasket.
2. Rotate engine crankshaft pulley clockwise until
letter and cylinder number stampings, located
on rear of camshafts, are in upright position.
M12 7637
