L322 Range Rover Service Procedures
PANEL REPAIRS
REPAIRS
-29
16. Fit front wheel arch liner.
17. Fit front wing.
18. Fit PAS pipes.
19. Fit throttle pedal.
20. Fit plenum chamber drain tube.
21. Fit windscreen lower finisher.
22. Diesel models: Fit FBH.
23. Diesel models: Fit FBH fuel pump.
24. Diesel models: Position and connect
intercooler pipes.
25. RH side: Fit gearbox fluid cooler.
26. Fit A/C pipes to sidemember.
27. Recharge A/C system.
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
28. LH side: Fit radiator expansion tank.
29. Fit air intake plenum.
30. LH side: Fit windscreen washer reservoir.
31. Fit radiator.
32. Fit front armature.
33. Fit front bumper assembly.
34. Fit underbelly panel.
35. Connect alternator.
36. Connect battery earth lead.

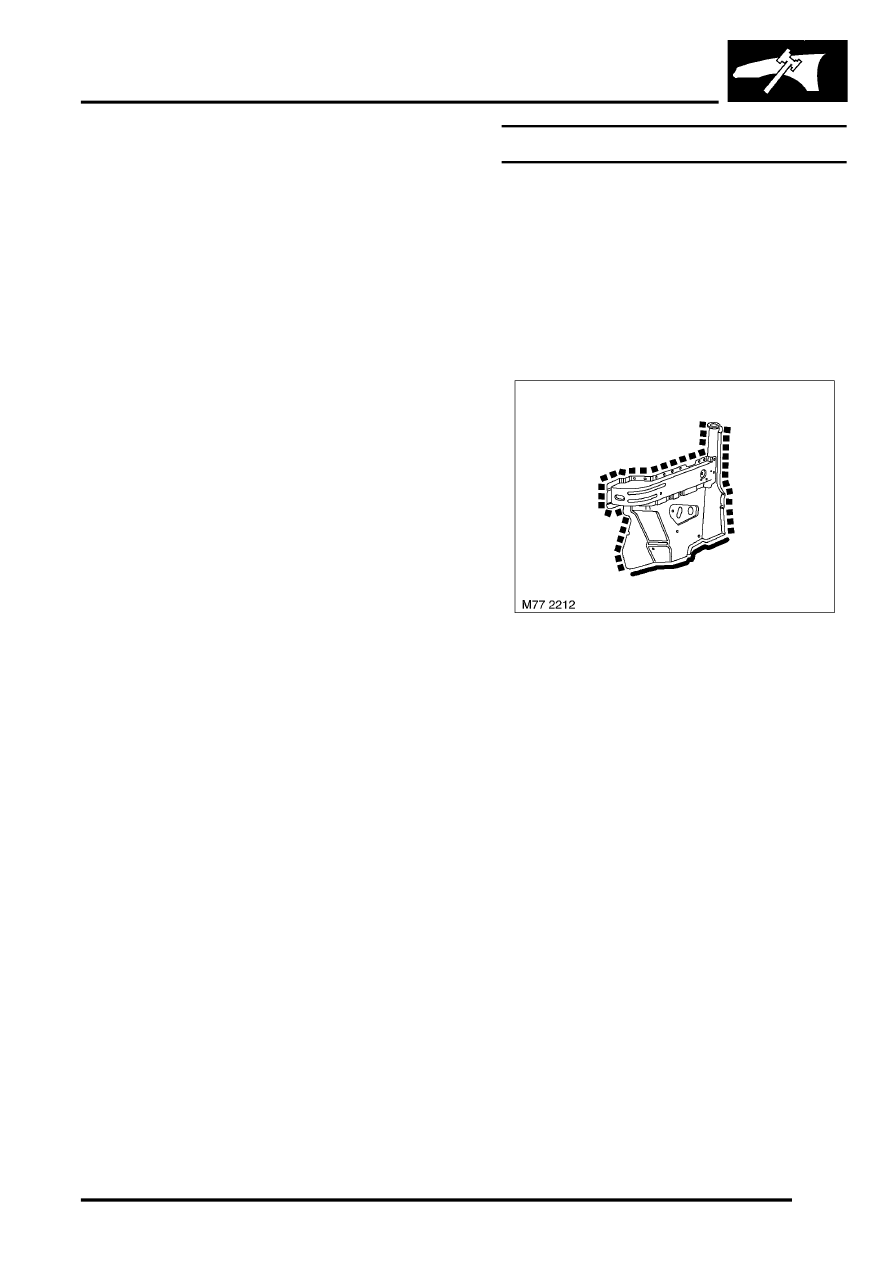

Valance inner reinforcement
The procedure to remove the valance inner
reinforcement is the same as the side member
assembly.
Remove
1. Remove front sidemember assembly.
, , Front sidemember assembly.
Repair
1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
Refit
1. Fit front sidemember assembly.
