L322 Range Rover Service Procedures
PANEL REPAIRS
-28
REPAIRS
18. Remove plenum chamber drain tube.
19. Remove throttle pedal.
20. Remove front wing.
21. Remove front wheel arch liner.
22. Remove PAS pipes to access panel.
23. LH side: Remove windscreen washer
reservoir.
24. Remove alternator.
25. Remove ABS modulator.
BRAKES, REPAIRS, ABS Modulator
26. Remove fuel pipes from sidemember.
27. LH side: Remove fuel filter.
28. LH side: Remove battery carrier.
29. Remove air spring assembly.
FRONT SUSPENSION, REPAIRS, Air
30. RH side: Remove air suspension reservoir.
FRONT SUSPENSION, REPAIRS, Air
31. Remove fuel and brake pipes.
32. Disconnect wiring harnesses and position
aside.
33. Remove insulation from dash lower.
34. Remove heatshield from tunnel.
35. Remove steering column assembly.
36. Remove fascia carrier.
37. Release front carpet to access welds.
Repair

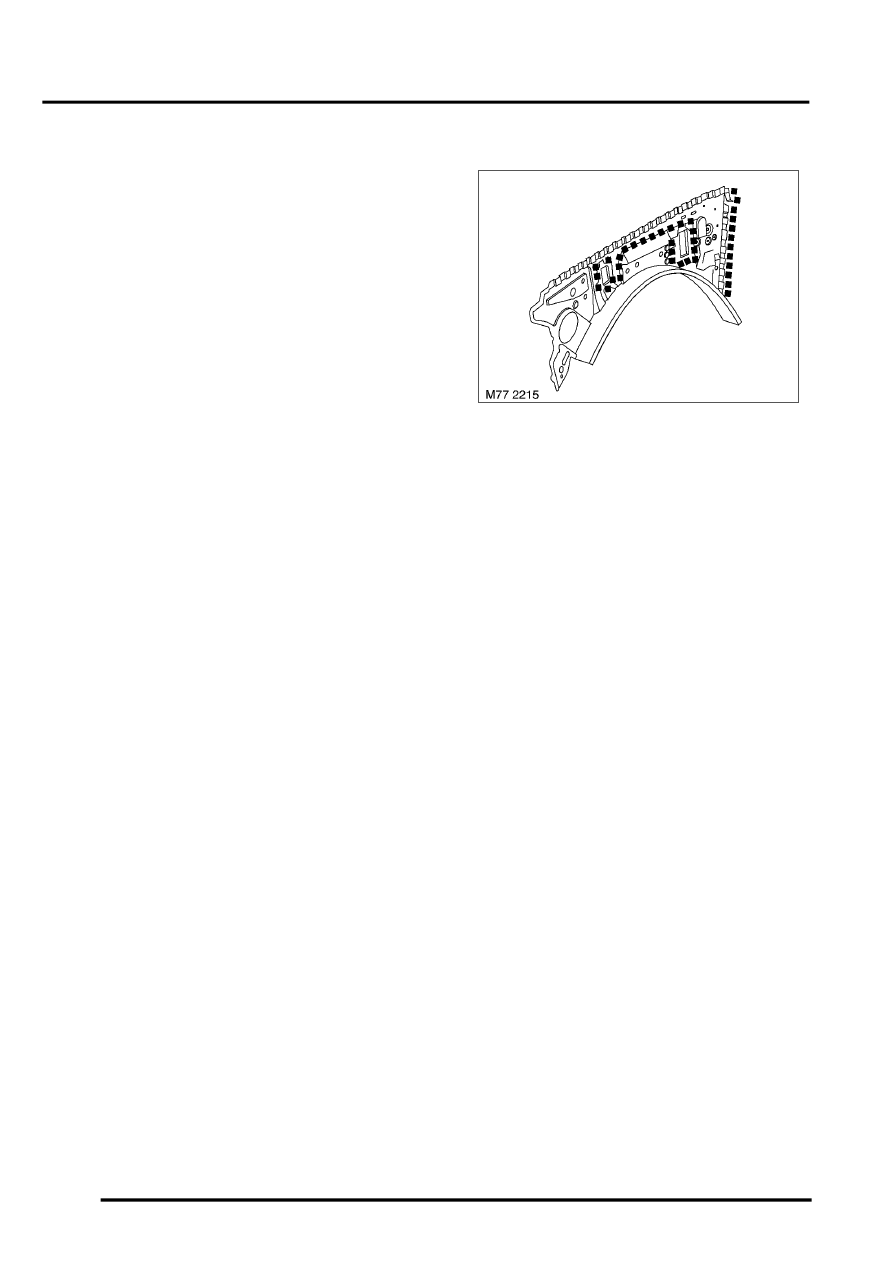

1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
Refit
1. Fit insulation pads to dash lower.
2. Position front carpet.
3. Fit fascia carrier.
4. Fit steering column assembly.
5. Fit heatshield to tunnel.
6. Fit and secure wiring harnesses and position
aside.
7. Fit fuel and brake pipes.
8. Fit air spring assembly.
FRONT SUSPENSION, REPAIRS, Air
9. RH side: Fit air suspension reservoir.
FRONT SUSPENSION, REPAIRS, Air
10. LH side: Fit fuel filter.
11. LH side: Fit battery carrier.
12. Fit fuel pipes to sidemember.
13. Fit ABS modulator.
BRAKES, REPAIRS, ABS Modulator
14. Fit brake servo.
15. Fit alternator.
