PANEL REPAIRS
-42
REPAIRS
Refit
1. Fit rear section of the body side panel.
, , Body side panel - rear section.
2. Connect alternator.
3. Connect battery earth lead.
Body rear - outer panel
Remove
1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Remove tail door lower.
4. Remove tail door aperture seal.
5. Remove rear bumper armature.
6. Remove tow bar.
7. Remove exhaust assembly.
- Td6, REPAIR, Exhaust system and
mountings.
8. Remove both tail lamp assemblies.
9. Remove air supply unit.
FRONT SUSPENSION, REPAIRS, Air
10. Remove LH and RH rear quarter lower trim
casings.
11. Remove luggage space carpet.
12. Release vehicle harness from rear body lower
closing and position aside.
Repair
1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or

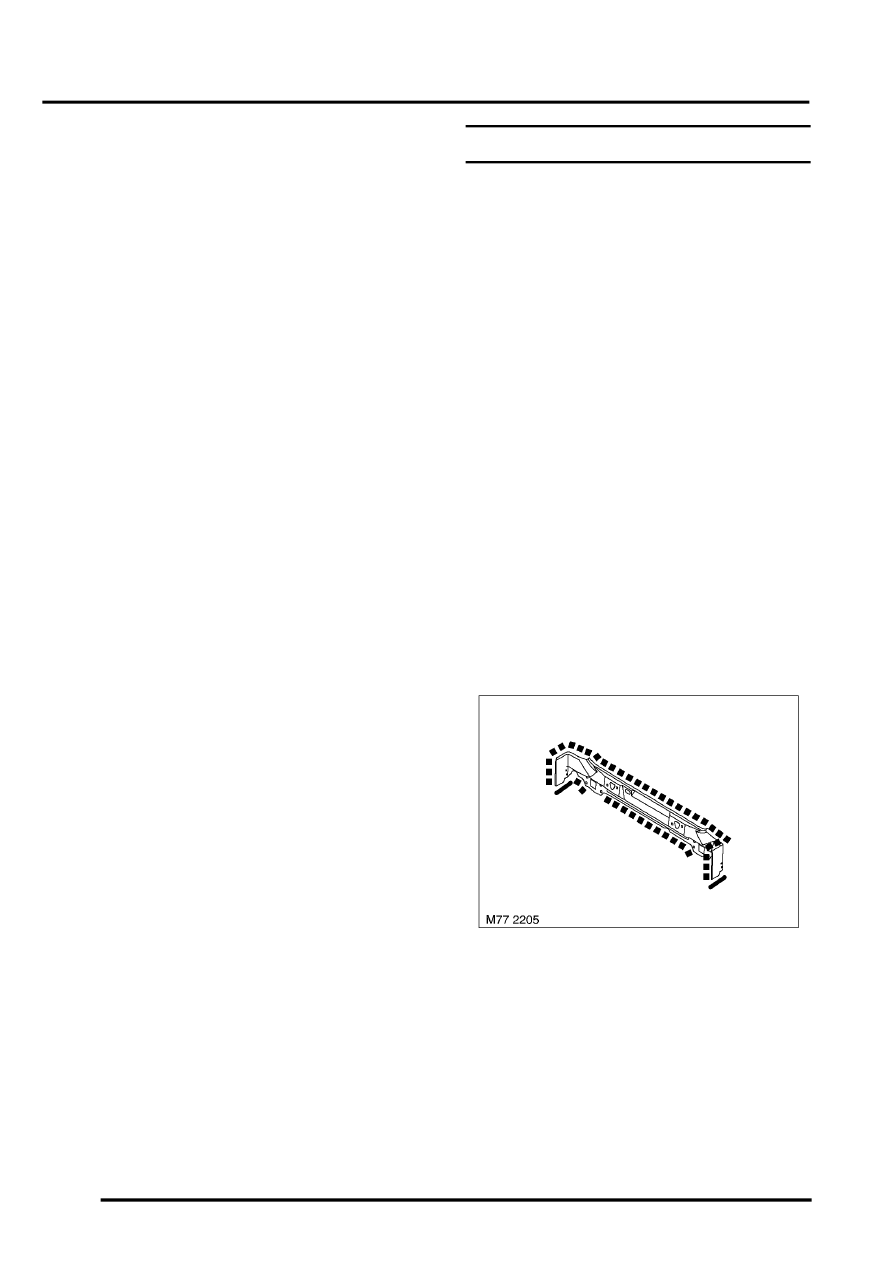

drill holes in new panel for plug welding as
shown.
