PANEL REPAIRS
REPAIRS
-41
Body side - rear extension
In this procedure, the body side rear extension in
conjunction with the inner body side rear panel.
Remove
1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Remove rear section of the body side panel.
, , Body side panel - rear section.
Repair

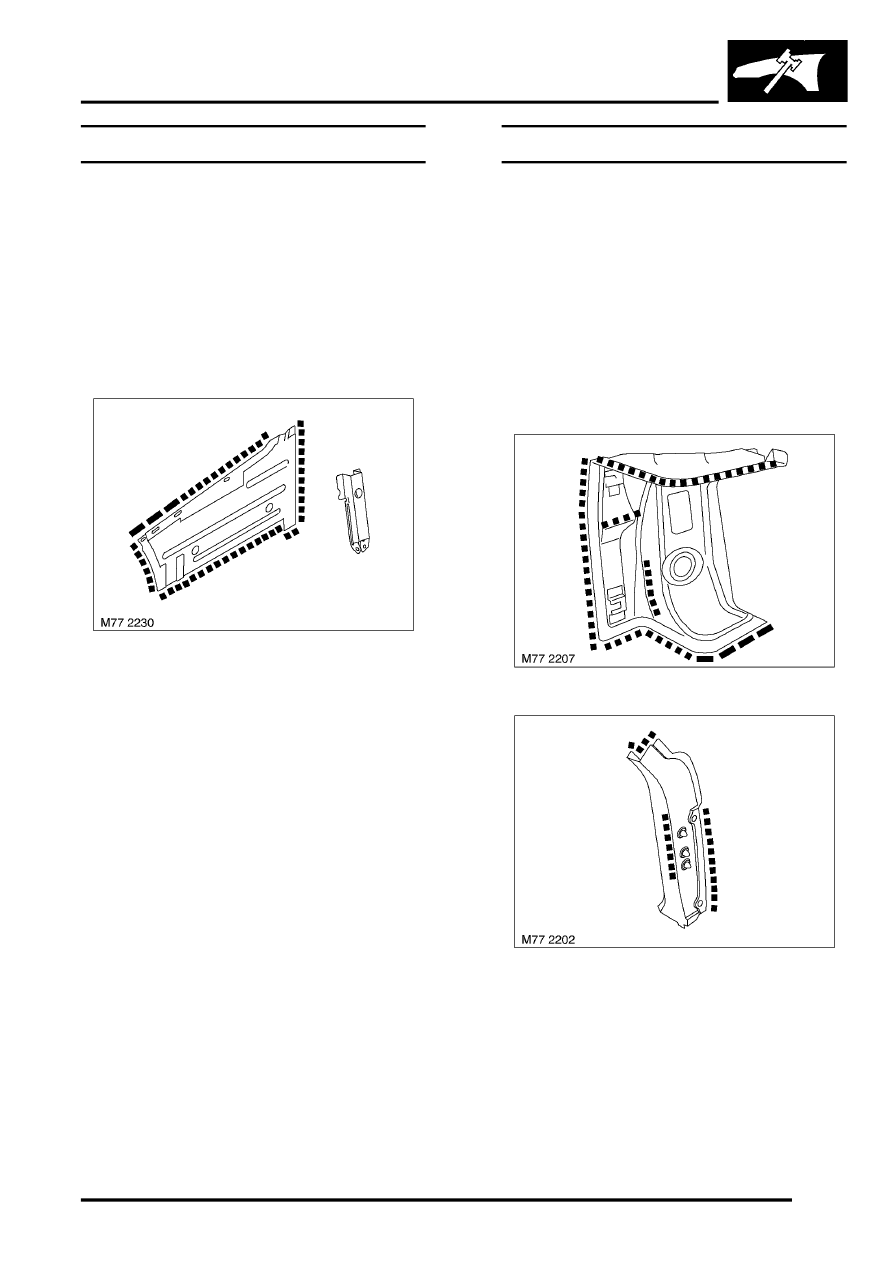

1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
Refit
1. Fit rear section of the body side panel.
, , Body side panel - rear section.
2. Connect alternator.
3. Connect battery earth lead.
Tail lamp mounting panel
The tail lamp mounting panel may be changed with
the body side rear section or the body rear outer
panel. The drain channel may also be changed in this
procedure.
Remove
1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Remove rear section of the body side panel.
, , Body side panel - rear section.
Repair
1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
