RESTRAINT SYSTEMS
75-4
REPAIRS
Seat belt - rear
$% 76.73.23
Remove

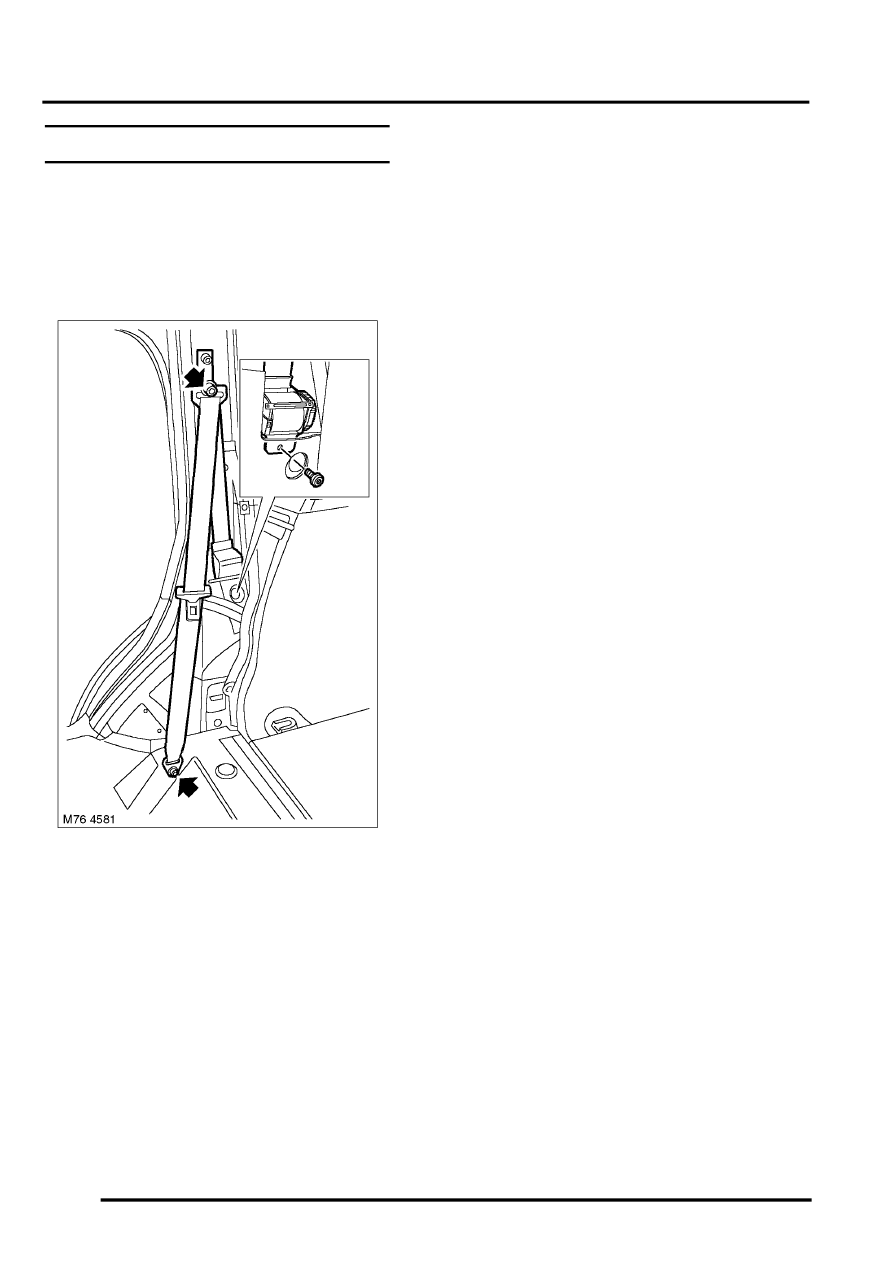

1. Remove 'D' post lower trim.
Trim finisher - 'D' post - lower.
2. Remove Torx bolt securing seat belt floor
anchor and remove 'D' post upper trim.
3. Remove Torx nut securing seat belt to upper 'D'
post anchor.
4. Remove Torx bolt securing seat belt reel.
5. Release seat belt reel from alignment bracket
and remove reel.
Refit
1. Fit seat belt reel to alignment bracket.
2. Fit Torx bolt securing seat belt reel and tighten
to 31 Nm (23 lbf.ft).
3. Position seat belt to upper 'D' post anchor and
secure with Torx nut, tighten to 31 Nm (23
lbf.ft).
4. Slide seat belt through 'D' post upper trim.
5. Position seat belt to floor anchor and secure
with Torx bolt, tighten to 31 Nm (23 lbf.ft).
6. Fit 'D' post lower trim.
