RESTRAINT SYSTEMS

REPAIRS

75-5

Pre-tensioner - front seat belt

$% 76.73.75

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

WARNING: Always disconnect both battery leads
before beginning work on the SRS system.
Disconnect the negative lead first. Never reverse
connect the battery.

Remove

1. Make the SRS system safe.



 +

 GENERAL INFORMATION,

Supplementary Restraint System (SRS)
Precautions.

2. Remove front seat.



 +

 SEATS, REPAIRS, Front seat.

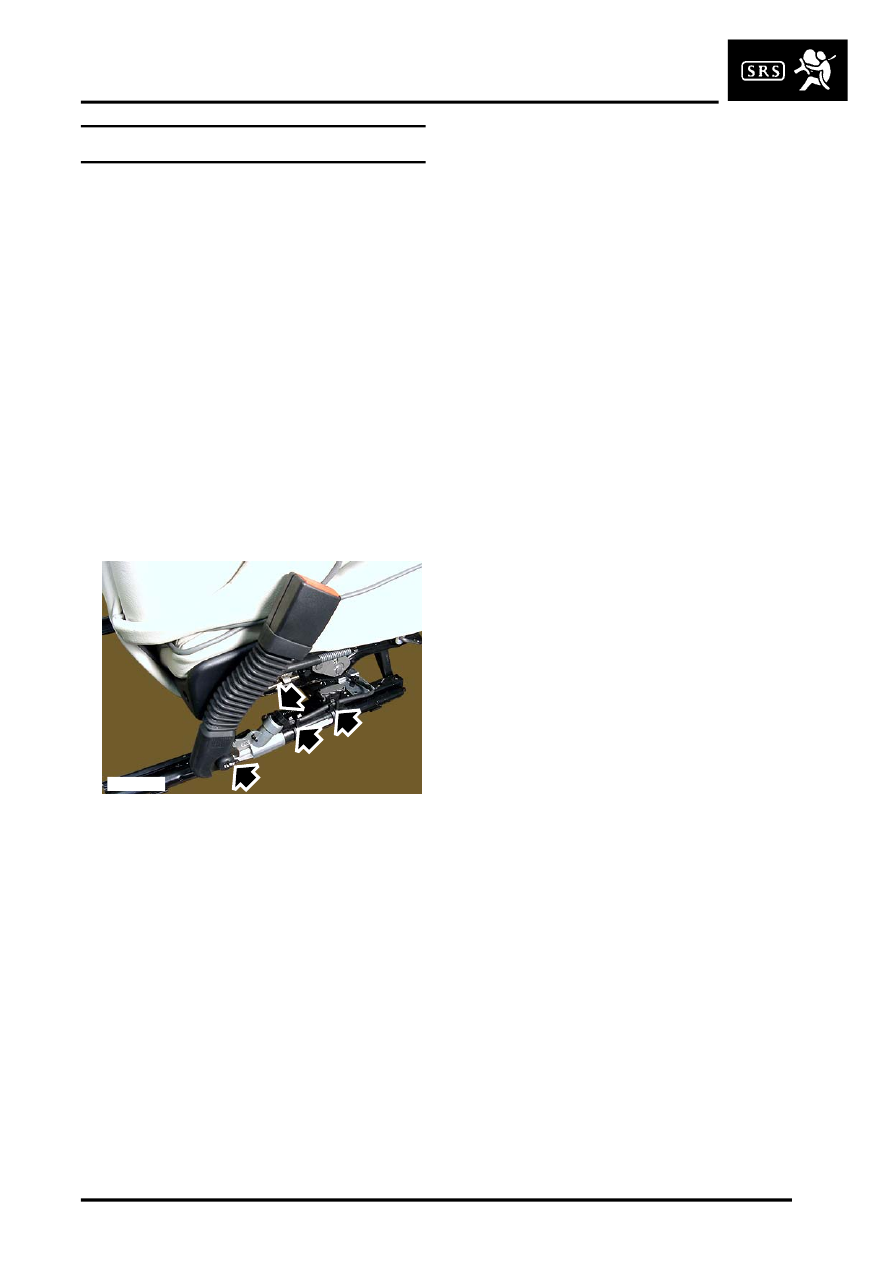

3. Release 2 clips securing harness to

pretensioner.

4. Disconnect multiplug from pretensioner.
5. Remove Torx bolt securing pre-tensioner to

seat and remove pretensioner.

WARNING: Store the airbag module or seat
pre-tensioner, with the deployment side
uppermost. If it is stored deployment side
down, accidental deployment will propel the
airbag module with enough force to cause
serious injury.

WARNING: Store the airbag module or seat
pre-tensioner in a designated storage area.
If there is no designated storage area
available, store in the locked luggage
compartment/loadspace area of the vehicle,
and inform the workshop supervisor.

Refit

NOTE: If the SRS component is to be replaced,
the bar code of the new unit must be recorded.

1. Fit pretensioner and tighten Torx bolt to 48 Nm

(35 lbf.ft).

2. Connect pretensioner multiplug and secure

harness with clips.

3. Fit front seat.



 +

 SEATS, REPAIRS, Front seat.

4. Connect battery leads, earth lead last.

M76 4367
