L322 Range Rover Service Procedures
RESTRAINT SYSTEMS
REPAIRS
75-33
Airbag module - head - front -
deployment - in vehicle
$% 76.74.42
These guidelines are written to aid authorised
personnel to carry out the safe disposal of airbag
modules.
Deploy
WARNING: It is imperative that before any
work is undertaken on the SRS system, the
appropriate information is read thoroughly.
1. Make the SRS system safe.
Supplementary Restraint System (SRS)
Precautions.
2. Remove fascia carrier.

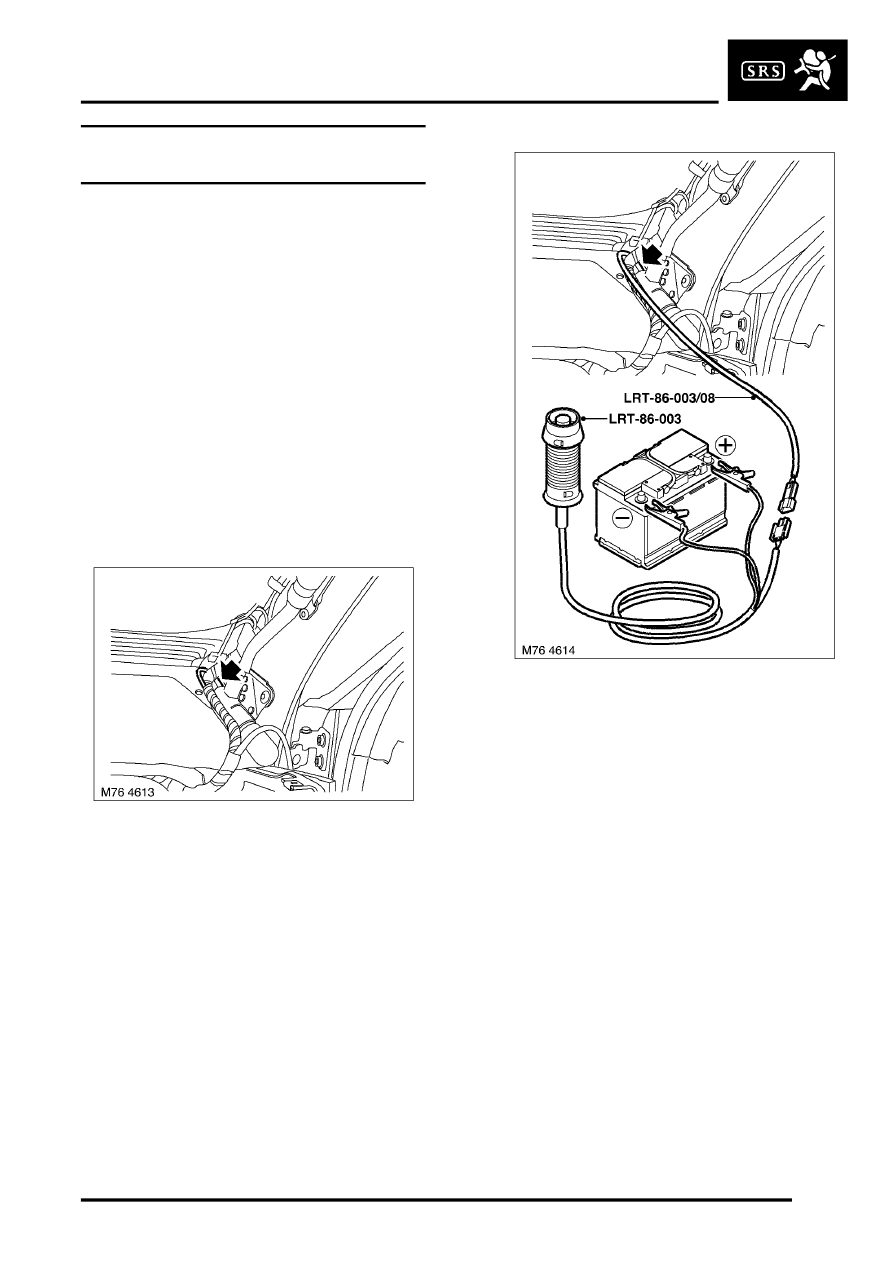

3. Disconnect multiplug from airbag module.
4. Check condition of deployment tool LRT-86-
003 and associated fly leads.
5. Connect deployment tool fly lead LRT-86-003/
08 to airbag.
6. Connect deployment tool LRT-86-003 to
deployment tool fly lead LRT-86-003/08.
7. Connect deployment tool LRT-86-003 to
battery.
WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the airbag
module.
8. Press deployment tool operating button to
deploy airbag module.
9. Disconnect deployment tool from battery.
WARNING: During deployment parts of the
airbag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the airbag module.
