L322 Range Rover Service Procedures
RESTRAINT SYSTEMS
REPAIRS
75-7
6. Disconnect multiplugs from switch units and
remove the switch units.
Refit
NOTE: If the SRS component is to be replaced,
the bar code of the new unit must be recorded.
1. Position switch units and connect multiplugs.
2. Fit switch units to airbag module and tighten
Torx screws to 2.5 Nm (1.8 lbf.ft).
3. Position airbag module and connect multiplugs.
NOTE: If the airbag module is to be replaced,
the bar code of the new module must be
recorded.
4. Models with heated steering wheel: Connect
multiplug to the heated steering wheel ECU.
5. Locate airbag module and carefully push to
secure.
6. Connect battery leads, earth lead last.
Airbag module - passenger
$% 76.74.02
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
WARNING: It is imperative that before any work
is undertaken on the SRS system, the
appropriate information is read thoroughly.
WARNING: Always disconnect both battery leads
before beginning work on the SRS system.
Disconnect the negative lead first. Never reverse
connect the battery.
Remove
1. Make the SRS system safe.
Supplementary Restraint System (SRS)
Precautions.
2. Remove top rail finisher.
INTERIOR FITTINGS, REPAIRS, Top
3. Remove shroud.

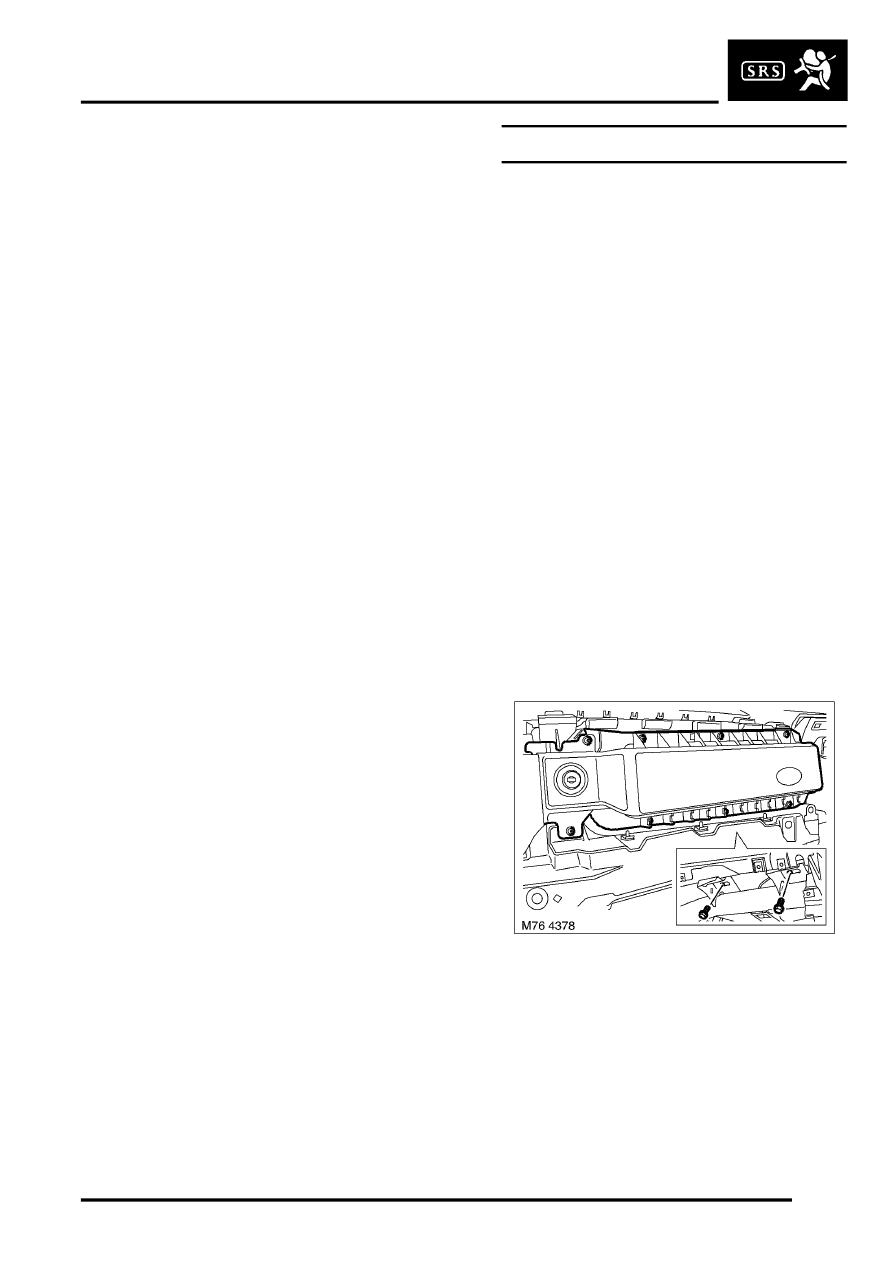

4. Remove 8 Torx screws securing airbag to front
of fascia.
5. Remove 2 bolts from underside of airbag.
6. Release airbag module from fascia.
CAUTION: Do not allow the airbag module
to hang by the airbag harness.
