Inspecting Rear Output Housing of LT230Q Transfer Box for Overhaul
TRANSFER BOX
OVERHAUL
21
13. Check dog clutch internal teeth and grooves for
wear and damage.

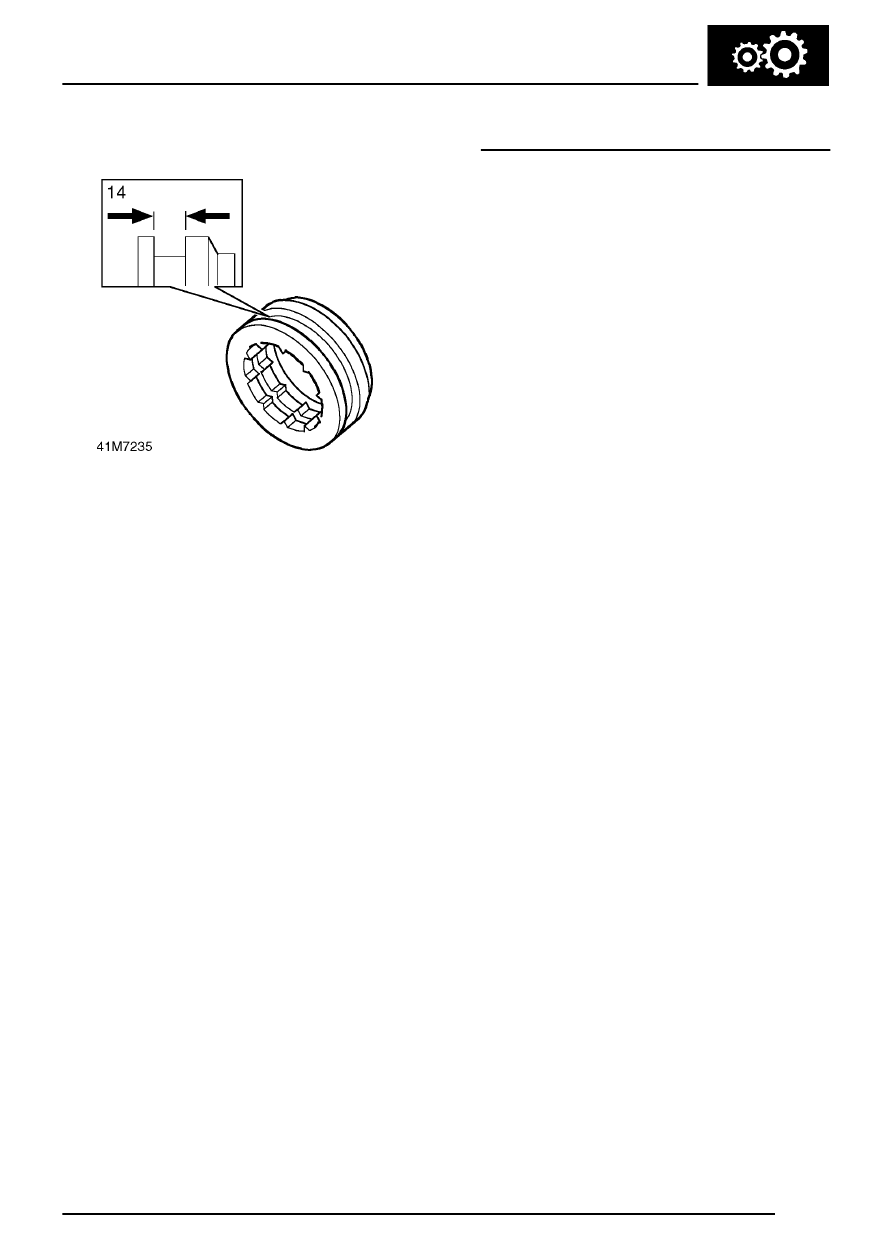

14. Check dog clutch selector fork groove width:
Groove width = 8.05 to 8.20 mm (0.32 to 0.33
in)
15. Check threads and splines of output shaft for
damage and wear.
16. Check dog clutch teeth on shaft for wear and
damage.
Rear output housing
1. Check bearing track recess in housing for
damage, rectify or replace housing as
necessary.
2. Check speedometer drive and driven gears for
damage and wear.
3. Check splines and threads of output shaft for
damage and wear.
