Range Rover P38
12
ENGINE
NEW RANGE ROVER
20
REPAIR

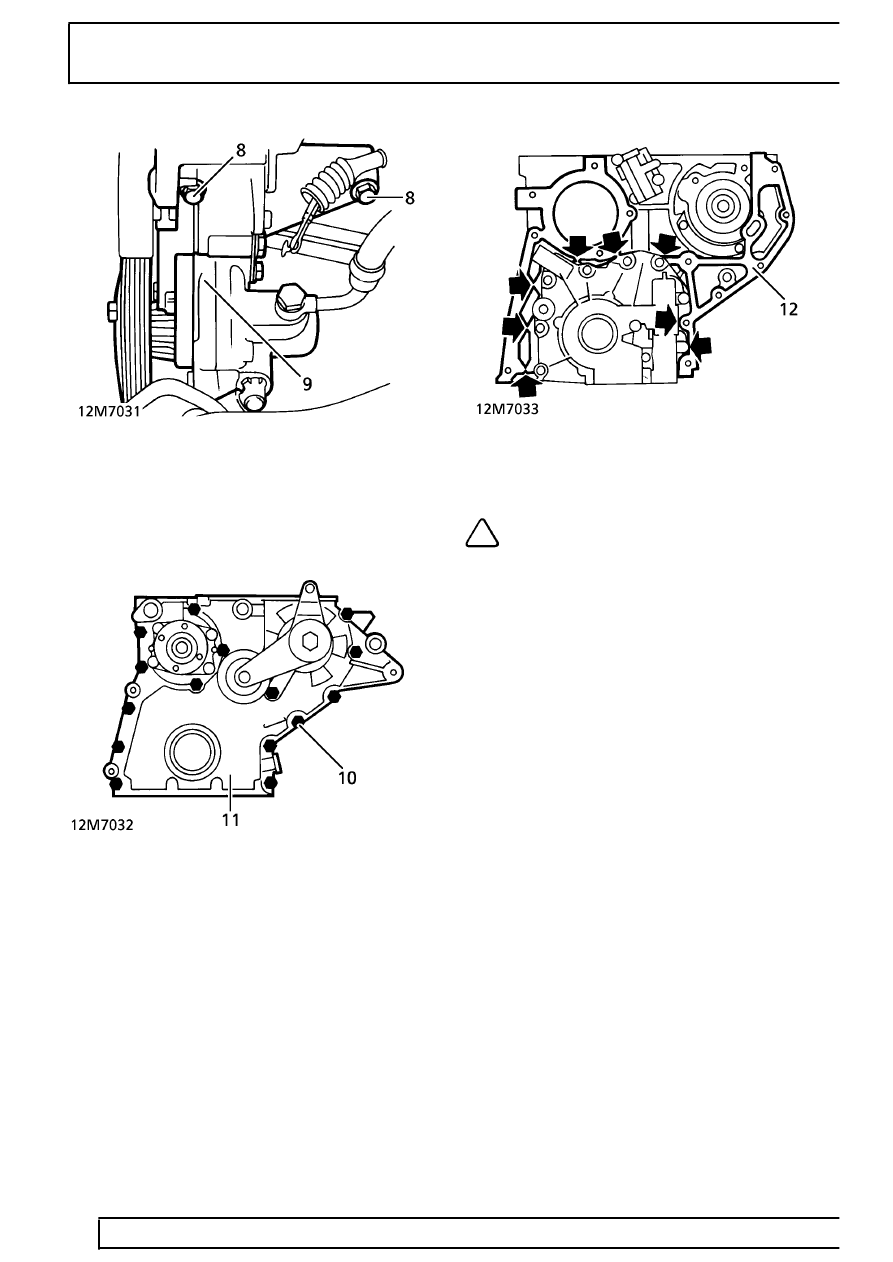

8. Remove 2 bolts securing power steering pump
bracket to front cover and cylinder block.
9. Release bracket/pump assembly. Tie aside.
10. Remove 15 bolts securing front cover to cylinder
block.
11. Remove front cover from 2 cylinder block ring
dowels.
12. Remove and discard gasket.
NOTE: Front cover gasket is integral with
oil pump gasket. When removing front
cover only, separate gaskets by cutting at
points shown.
Refit
13. Ensure mating faces are clean.
14. Position new gasket on cylinder block.
15. Align front cover to cylinder block dowels.
Secure with bolts. Tighten to
10 Nm (7 lbf.ft)
16. Position power steering pump on cylinder block
dowel.
17. Secure steering pump bracket to front cover and
cylinder block with bolts. Tighten to
22 Nm (16
lbf.ft)
18. Position air conditioning compressor bracket to
cylinder block. Secure with bolts.
19. Position compressor on mounting bracket ring
dowels. Secure with bolts.
20. Fit crankshaft pulley.
See this section.
21. Fit alternator.
See ELECTRICAL, Repair.
22. Fit sump.
See this section.
23. Fit cylinder head gasket.
See this section.
24. Reconnect battery negative lead.
