Repair Range Rover P38 Headlamp Wiper Blade, Arm & Washer Jet
WIPERS AND WASHERS
1
REPAIR
HEADLAMP WIPER BLADE, ARM & WASHER JET
Service repair no - 84.25.06 - Blade
Service repair no - 84.25.02 - Arm
Blade

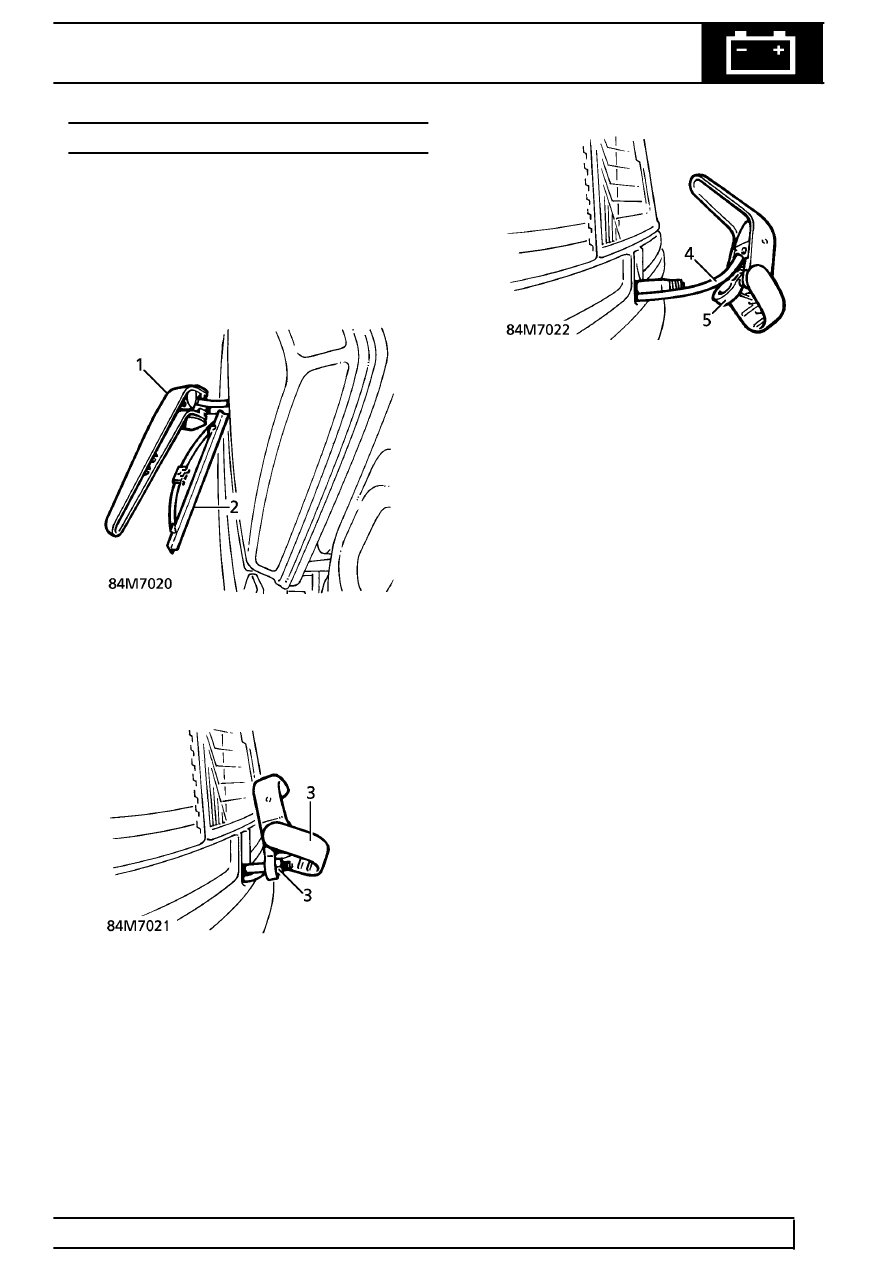

1. Lift wiper arm away from headlamp.
2. Remove wiper blade.
Arm and Washer jet Assembly
3. Lift cover. Remove nut securing arm to spindle.
4. Disconnect hose from washer jet.
5. Remove wiper arm/jet assembly from spindle.
Refit
6. Connect washer tube to jet.
7. Ensure wiper arm is in ’park’ position.
8. Position wiper arm to spindle. Set wiper arm
horizontal.
9. Secure wiper arm with nut. Tighten to
10 Nm
(7 lbf.ft). Secure cover.
Blade
10. Clip blade into wiper arm.
