WIPERS AND WASHERS
NEW RANGE ROVER
2
REPAIR

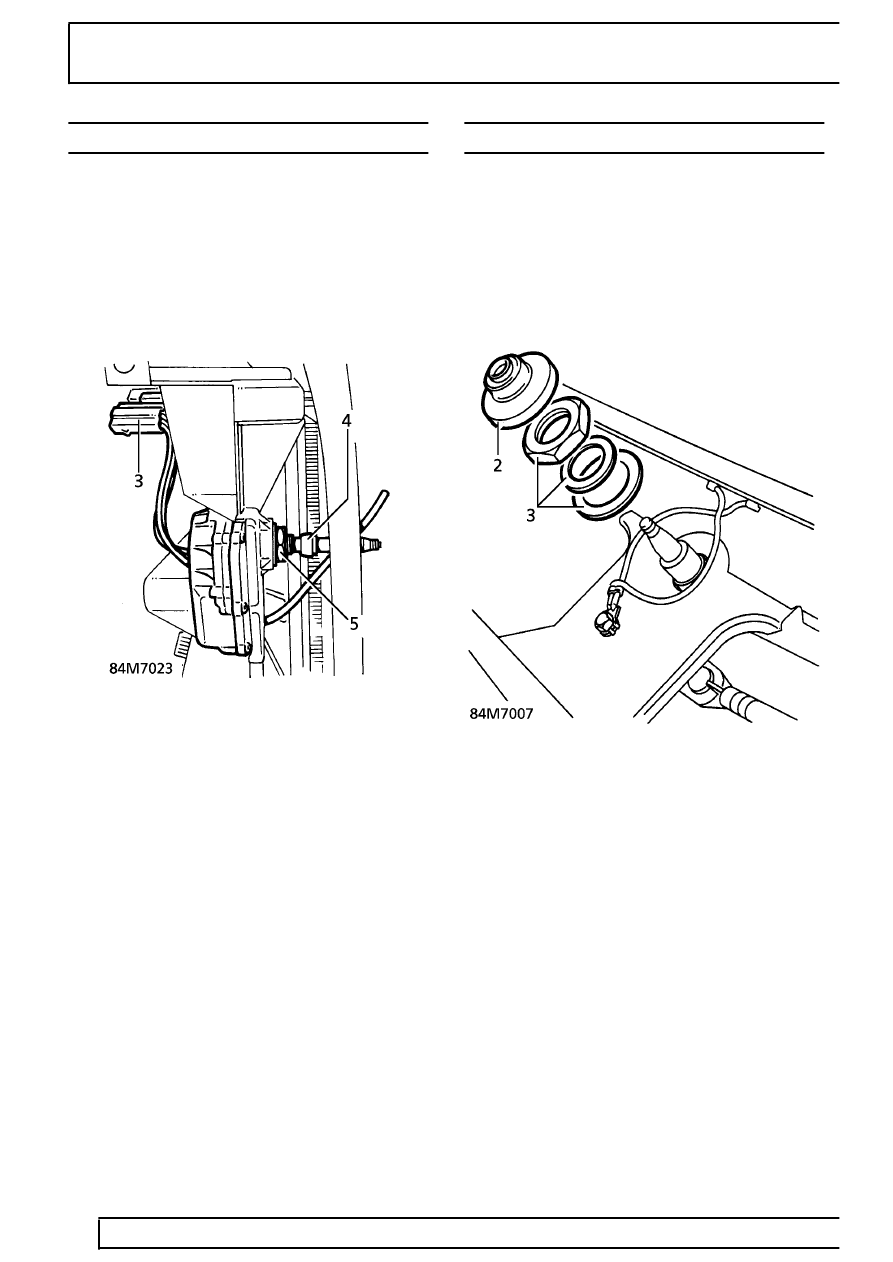

HEADLAMP WIPER MOTOR
Service repair no - 84.25.12
Remove
1. Remove relevant wiper blade.
See this section.
2. Remove relevant headlamp assembly.
See
ELECTRICAL, Repair.
3. Release wiper motor multiplug from bracket.
4. Remove spindle seal.
5. Remove nut and flat washer securing motor to
headlamp.
6. Remove wiper motor.
Refit
7. Reverse removal procedure.
8. Tighten motor securing nut to
10 Nm (7 lbf.ft).
WIPER MOTOR AND LINKAGE
Service repair no - 84.15.11
Remove
1. Remove air intake plenum.
See HEATING AND
VENTILATION, Repair.
2. Remove covers from wiper spindles.
3. Remove nuts and flat washers securing wiper
spindle housings.
4. Disconnect screen heater multiplug. Release
multiplug clip from scuttle side panel on driver’s
side of vehicle.
5. Remove 6 bolts securing scuttle side panel.
Remove panel.
