WIPERS AND WASHERS
NEW RANGE ROVER
6
REPAIR
Refit

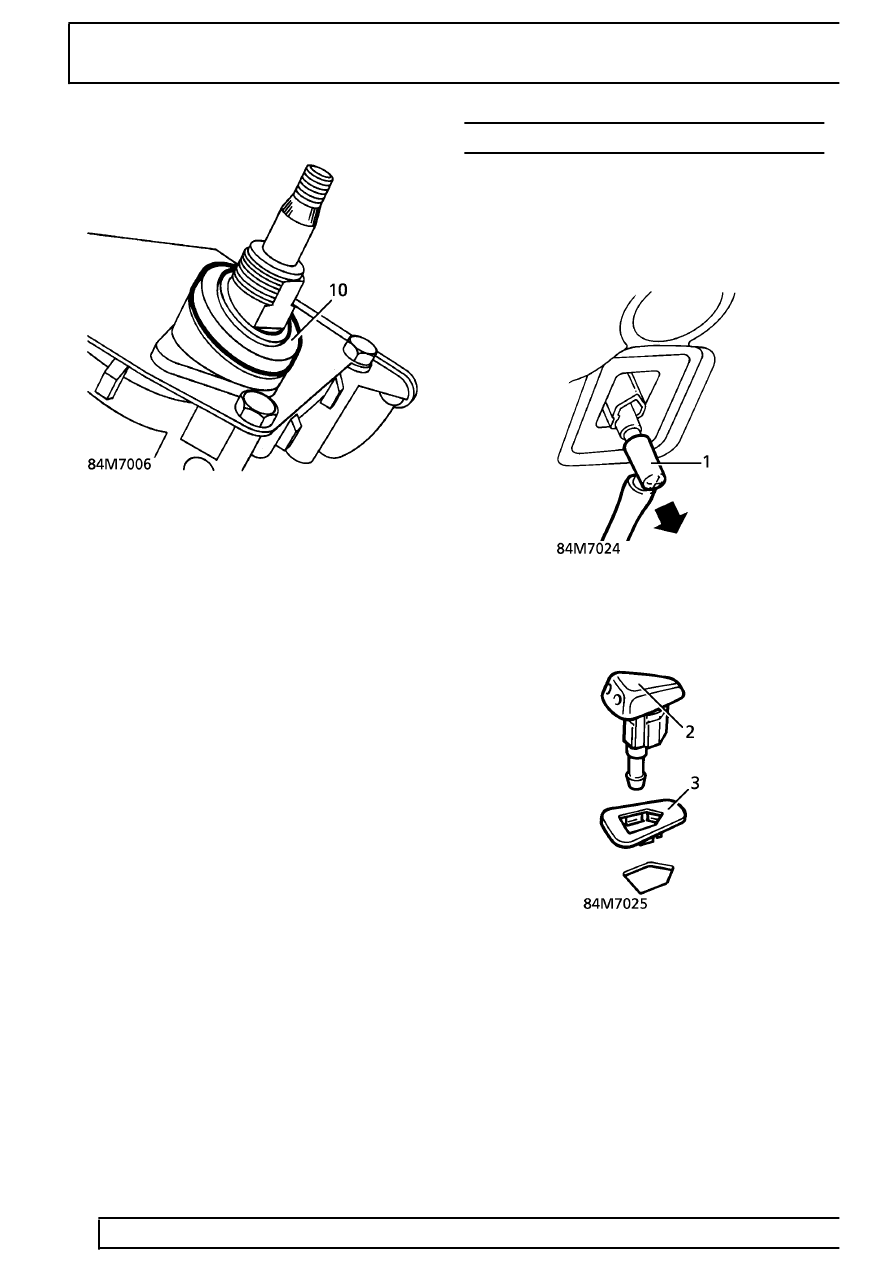

11. Fit sealing rubber to motor spindle.
12. Fit mounting plate. Secure with bolts.
13. Connect multiplug holder to mounting plate.
14. Position motor. Secure with bolts. Tighten to
7 Nm (5 lbf.ft)
15. Connect multiplug.
16. Position motor cover. Secure with screws.
17. Close tailgate.
18. Fit motor spindle seal. Fit retaining nut. Tighten
to
4 Nm (3 lbf.ft). Fit cover.
19. Position wiper arm. Secure with retaining nut.
Tighten to
17 Nm (12 lbf.ft). Fit cover.
WASHER JET - FRONT
Service repair no - 84.10.08
Remove
1. Disconnect washer tube elbow from base of jet.
2. Remove jet from retainer.
3. Remove retainer.
Refit
4. Reverse removal procedure.
