Tdi

17

REPAIR

Method 2.
Thread the bore of the existing bush and using a
suitable bolt extract the bush. Thoroughly clean bush
location ensuring all swarf is removed.

Fitting

6. Fit new bush using a suitable shouldered drift,

inserting bush flush with end of crankshaft.

7. Refit flywheel.

See Flywheel

8. Refit clutch.

See CLUTCH, Repair, Clutch

Assembly

9. Refit gearbox.

See MANUAL GEARBOX,

Repair, R380 Manual Gearbox

10. Reconnect battery negative lead.

FLYWHEEL HOUSING

Service repair no - 12.53.01

Remove

1. Disconnect battery negative lead.
2. Remove gearbox.

See MANUAL GEARBOX,

Repair, R380 Manual Gearbox

3. Remove clutch.

See CLUTCH, Repair, Clutch

Assembly

4. Remove flywheel.

See Flywheel

5. Remove starter motor.

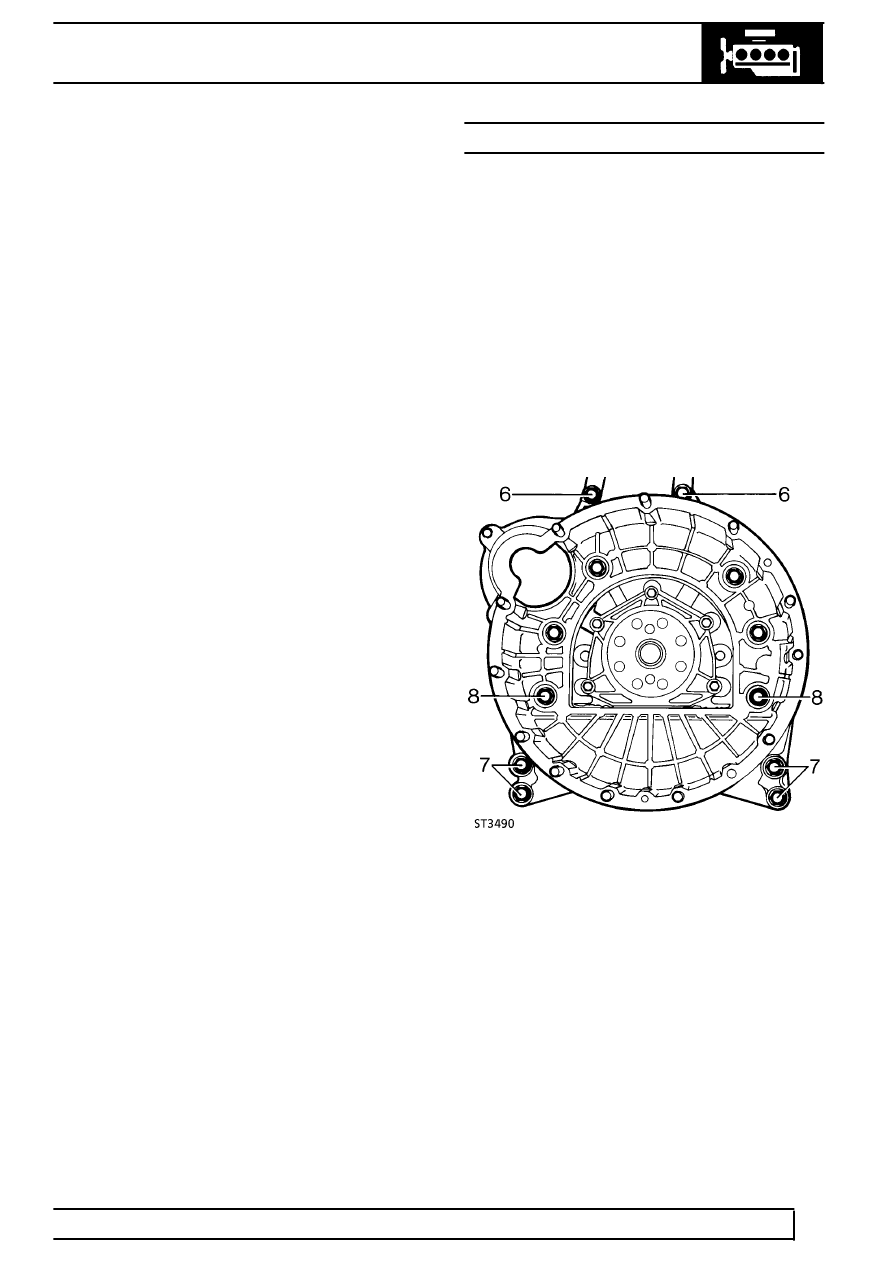

6. Remove two bolts from top of flywheel housing.
7. Remove four bolts from bottom of flywheel

housing.

8. Remove six inner bolts and lift off flywheel

housing.

Refit

9. Clean rear face of housing and mating face on

block, ensuring all old sealant is removed.
