REPAIR
13. Place end-float gauge LST111 onto pump
housing and check that axial play is between
0.2-0.4 mm. Replace existing washer, situated at
rear of intermediate plate, with suitable washer
to give required end-float.
NOTE: If damage is apparent to bolts they
should be replaced.

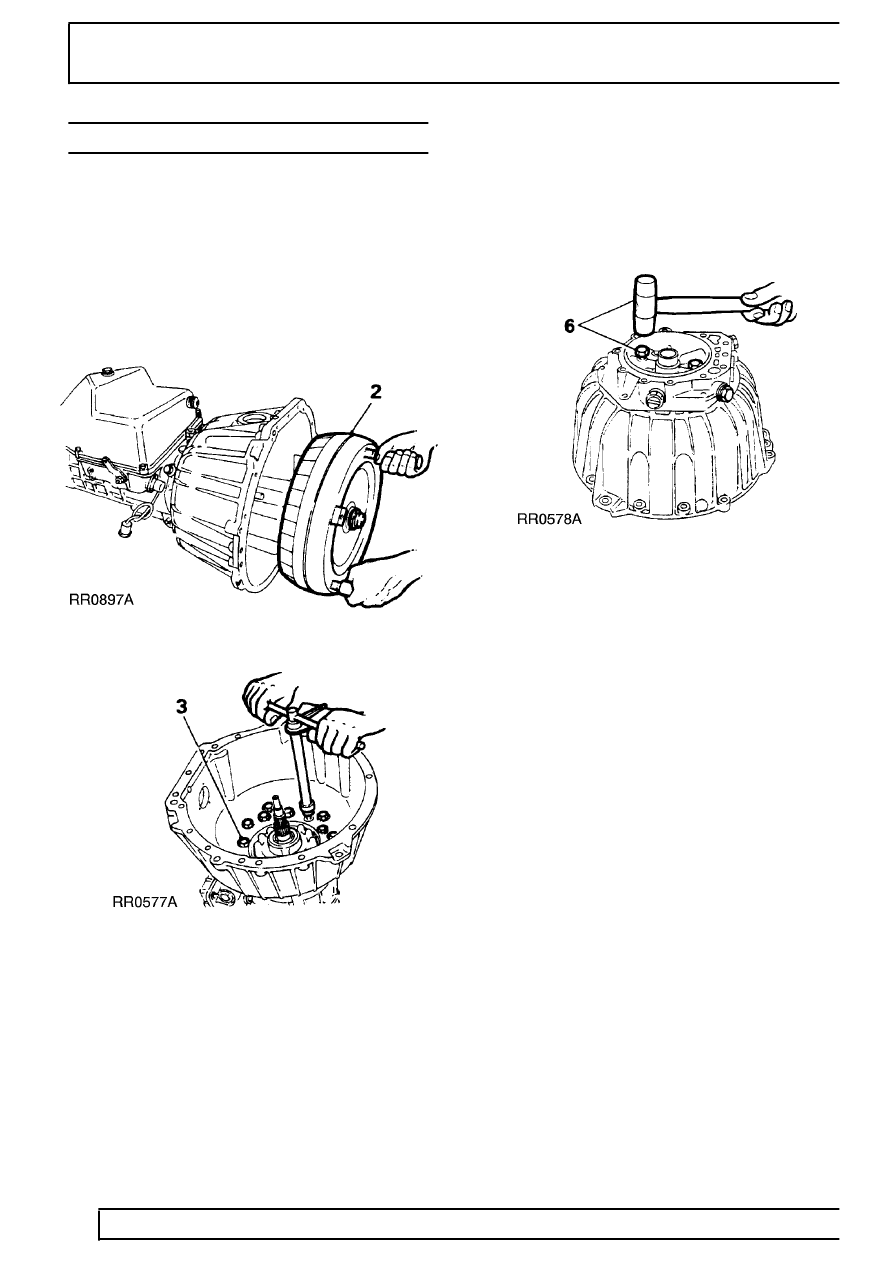

14. Refit torque converter into housing using torque
converter handles 18G1501. Check dimension
converter fixing boss to converter housing face is
50 mm. This shows converter is properly seated
in housing.
15. Refit gearbox/transfer box assembly.
See ZF
Auto with Borg Warner Transfer Gearbox
