Range Rover Classic
ELECTRICAL
11
REPAIR

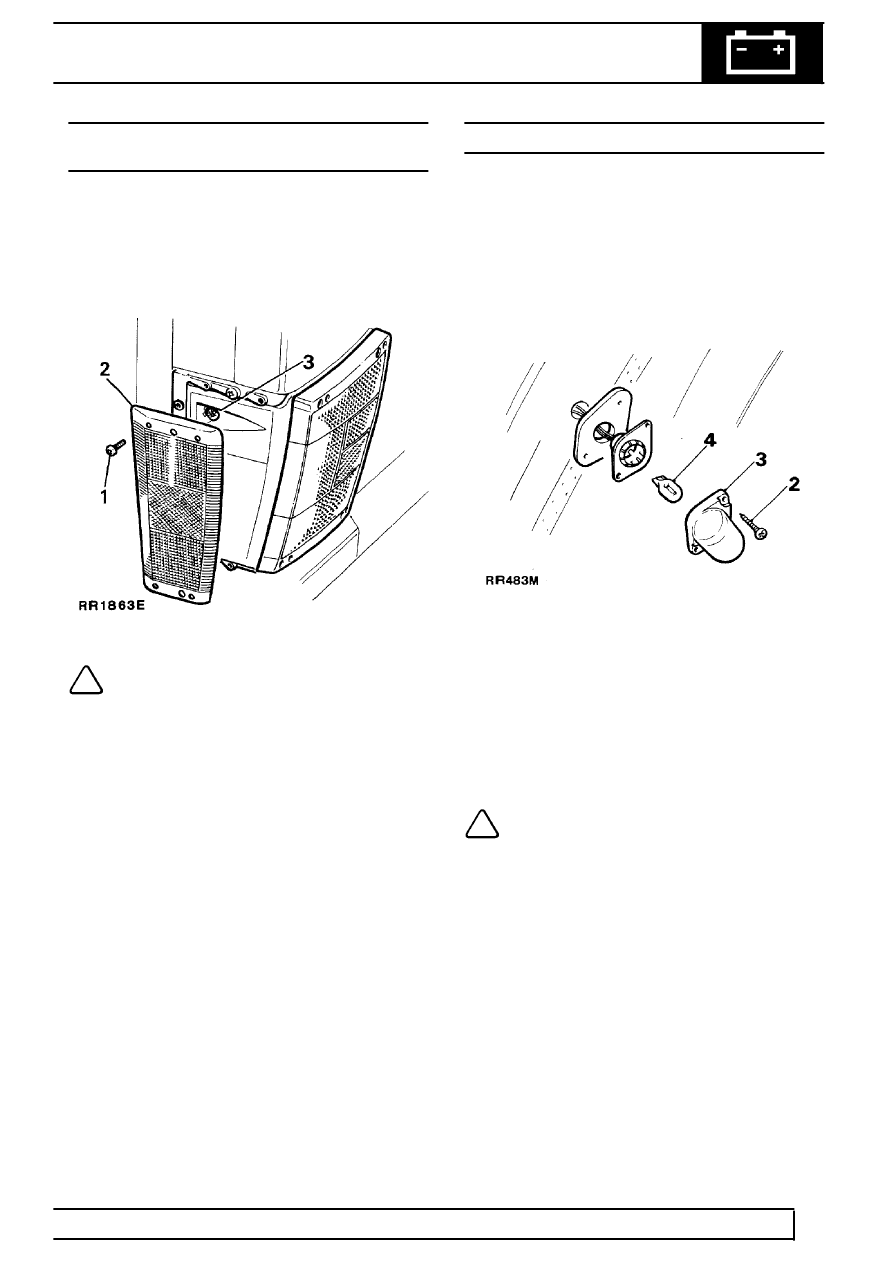

REFLECTORS/SIDE MARKER LAMP ASSEMBLY
AND BULB
Service repair no - 86.40.67
Remove
1. Remove four screws securing lens.
2. Remove lens.
3. Remove bulb.
NOTE: To remove rubber seal completely
it is necessary to remove tail light lens.
Refit
4. Reverse removal procedure.
UNDER BONNET LAMP ASSEMBLY
Service repair no - 86.45.24
Remove
1. Disconnect battery negative lead.
2. Remove two securing screws.
3. Remove lamp glass.
4. Pull ’wedge’ type bulb from bulb holder.
5. Disconnect electrical leads located below bonnet
lamp switch attached to inner fender.
6. Pull rubber grommet off leads and pull lamp and
leads up through hood stiffener channel.
Refit
7. Reverse removal procedure. 1 to 6.
NOTE: A piece of bent wire will be needed
to pull electrical leads out of channel exit
hole when fitting a new lamp assembly.
