6 L4-2.5L (2010)

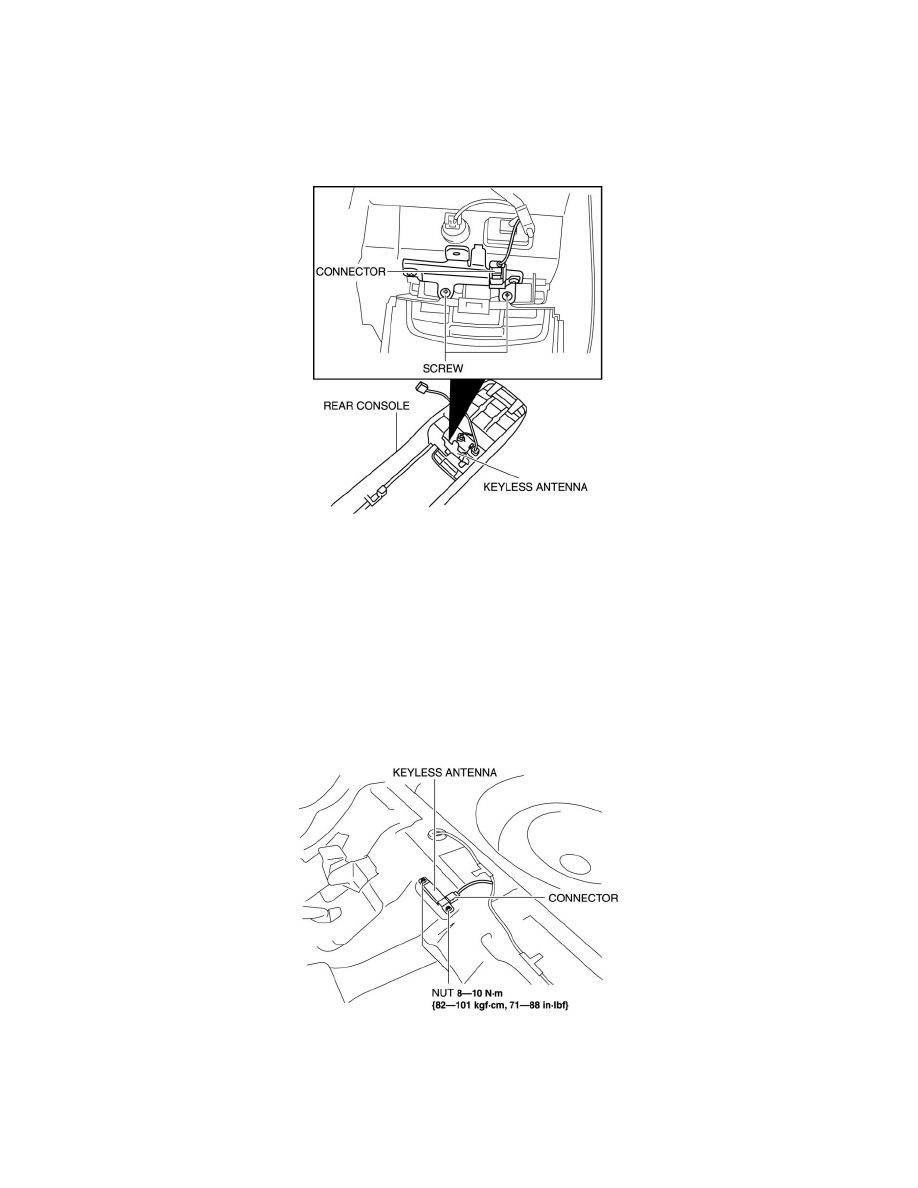

e. Center panel lower See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removal and
Replacement/Center Panel Lower Removal/Installation
f.
Rear console See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Removal and Replacement/Rear Console
Removal/Installation
3. Disconnect the connector.
4. Remove the bolt.
5. Remove the keyless antenna.
6. Install in the reverse order of removal.
Vehicle Interior, Rear
1. Disconnect the negative battery cable.
2. Remove the rear seat cushion. See: Body and Frame/Seats/Seat Cushion/Service and Repair/Rear Seat Cushion Removal/Installation
3. Disconnect the connector.
4. Remove the nuts.
5. Remove the keyless antenna.
6. Install in the reverse order of removal.
Vehicle Exterior, Rear
