6 L4-2.5L (2010)
Speaker: Testing and Inspection
Front Center Speaker Inspection
FRONT CENTER SPEAKER INSPECTION
1. Disconnect the negative battery cable.
2. Remove the center panel upper. See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removal and
Replacement/Center Panel Upper Removal/Installation
3. Remove the front center speaker. See: Service and Repair/Front Center Speaker Removal/Installation

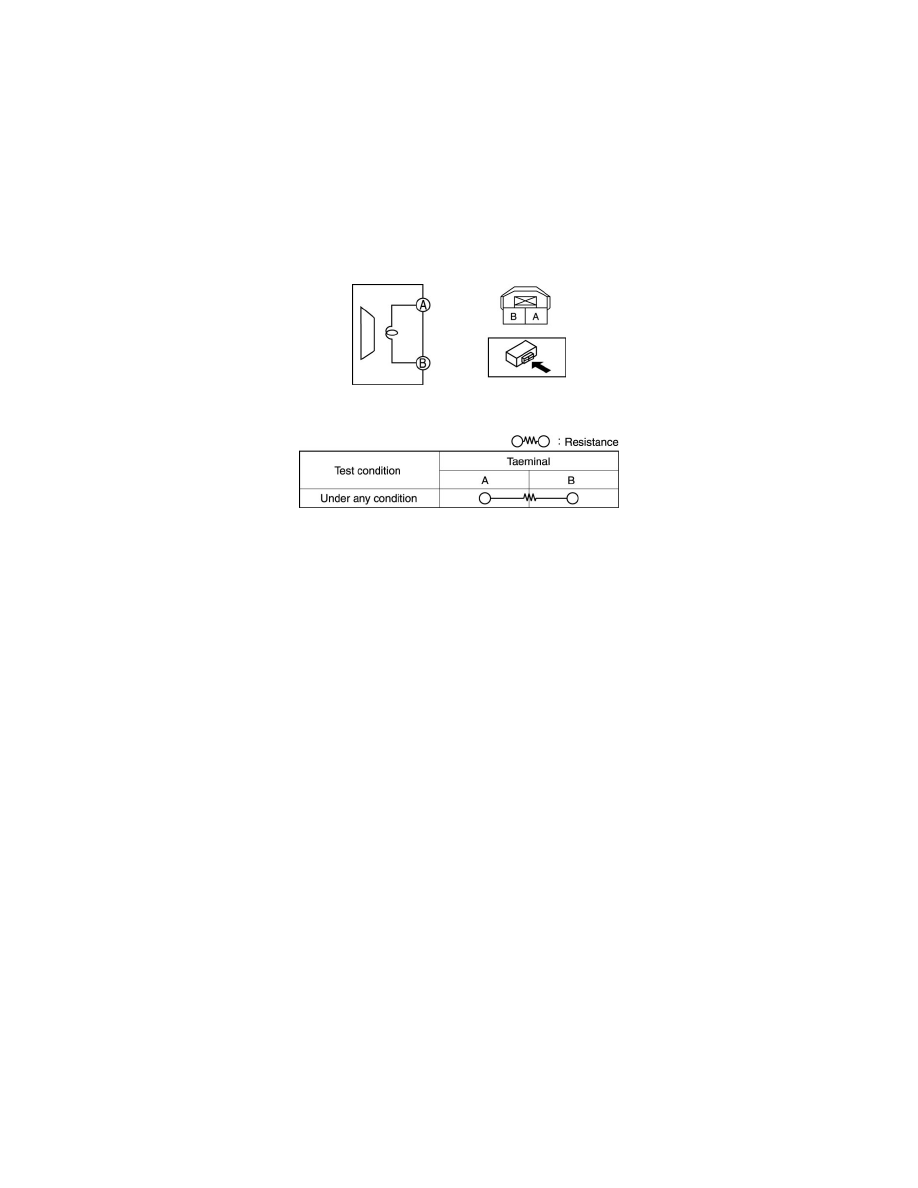

4. Verify the resistance between the front center speaker terminals.
-
If not within the specification, replace the front center speaker.
Resistance
-
2.24-3.96 ohms
Rear Center Speaker Inspection
REAR CENTER SPEAKER INSPECTION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. High-mount brake light (See See: Lighting and Horns/Center Mounted Brake Lamp/Service and Repair)
b. Rear seat cushion (See See: Body and Frame/Seats/Seat Cushion/Service and Repair/Rear Seat Cushion Removal/Installation)
c. Rear side seat back See: Body and Frame/Seats/Service and Repair/Overhaul/Rear Side Seat Back Removal/Installation
d. C-pillar trim See: Body and Frame/Interior Moulding / Trim/Trim Panel/Service and Repair/C-Pillar Trim Removal/Installation
e. Rear package trim See: Body and Frame/Interior Moulding / Trim/Rear Shelf/Service and Repair
f.
Rear center speaker See: Service and Repair/Rear Center Speaker Removal/Installation

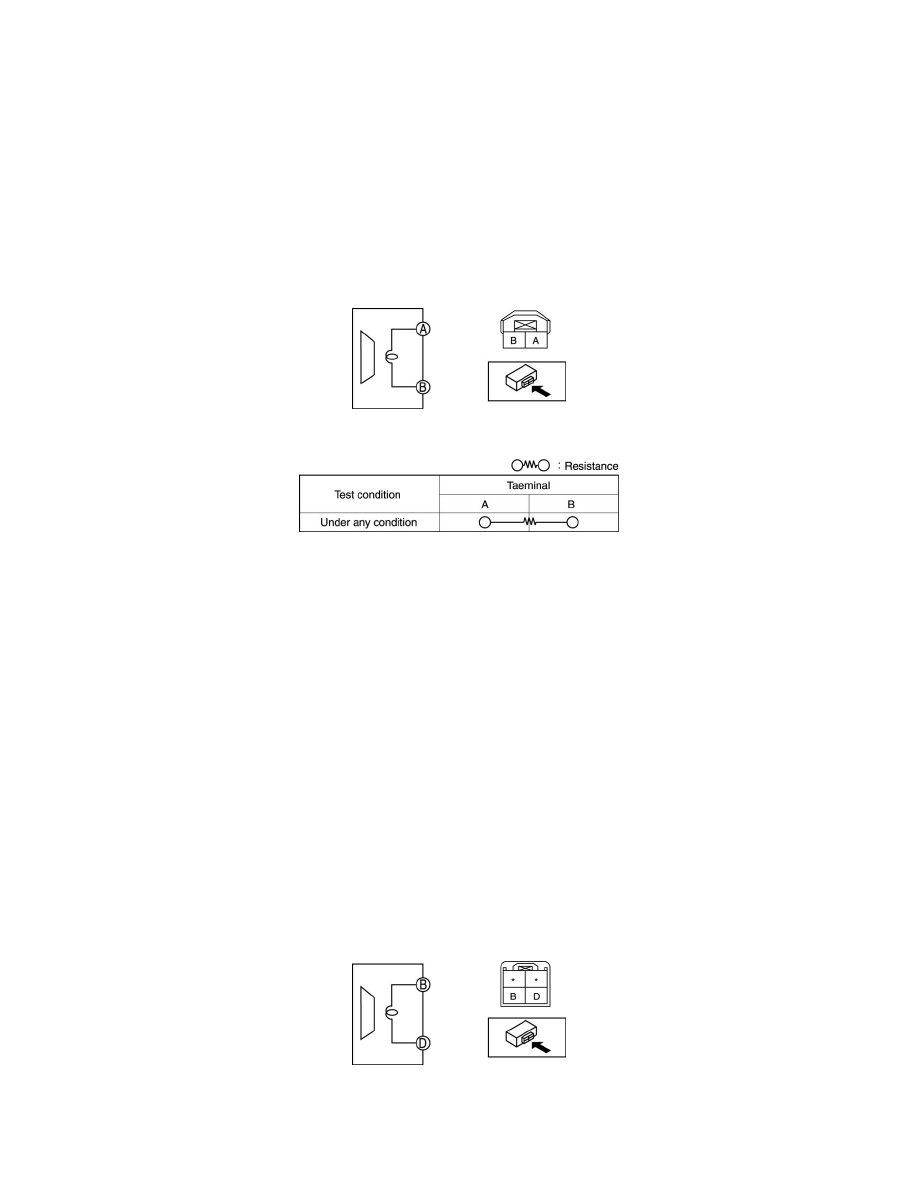

3. Verify the resistance between the rear center speaker terminals.
-
If not within the specification, replace the rear center speaker.
