Water Pump: Specifications
- Make
- Mazda
- Model
- 6
- Engine
- L4-2.5L
- Year
- 2010
- Section
- Engine › Water Pump › Specifications
Engine, Cooling and ExhaustSpecifications · page 1 of 2

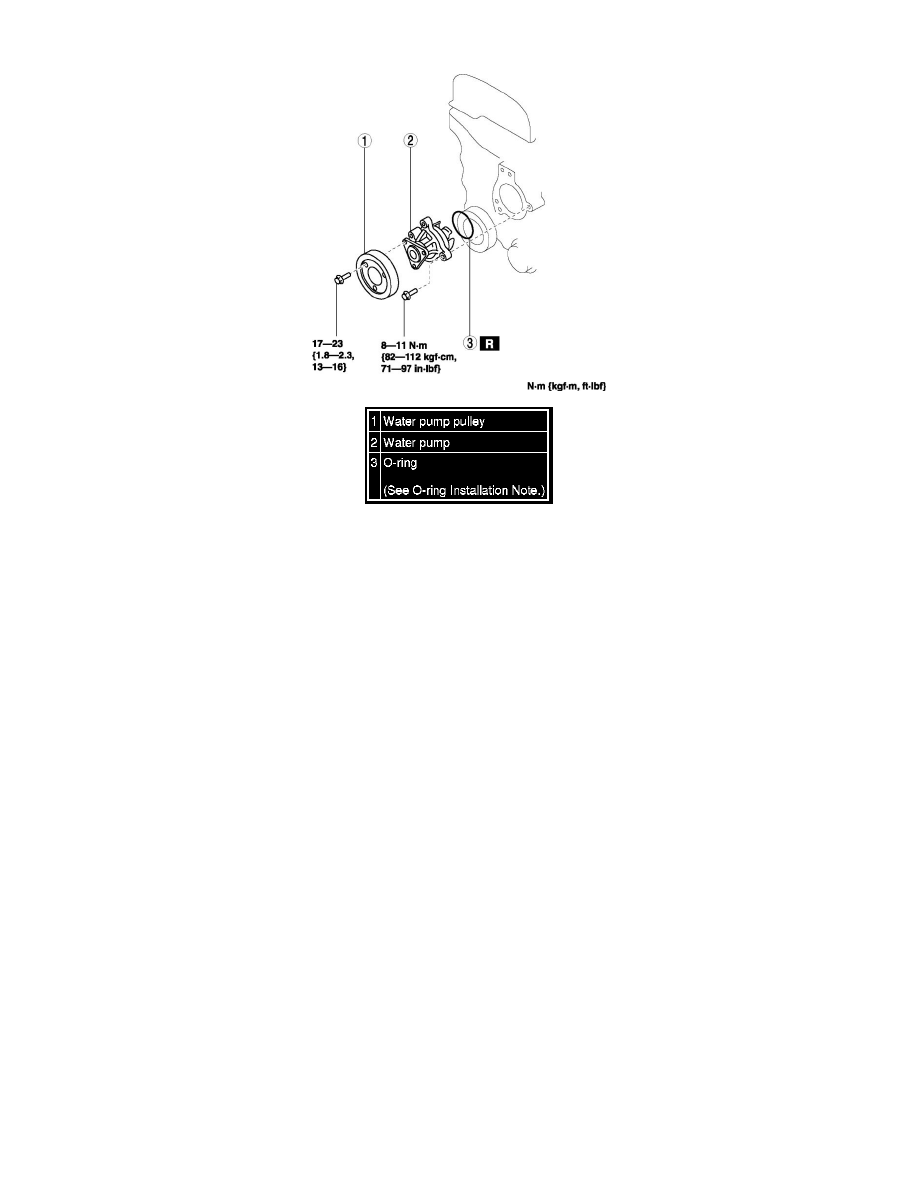

Water Pump: Specifications – diagram from the Engine, Cooling and Exhaust chapter of the Mazda 6 L4-2.5L (2010) factory manual.
Water Pump: Specifications
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
