Flex Plate: Specifications
AW6A-EL

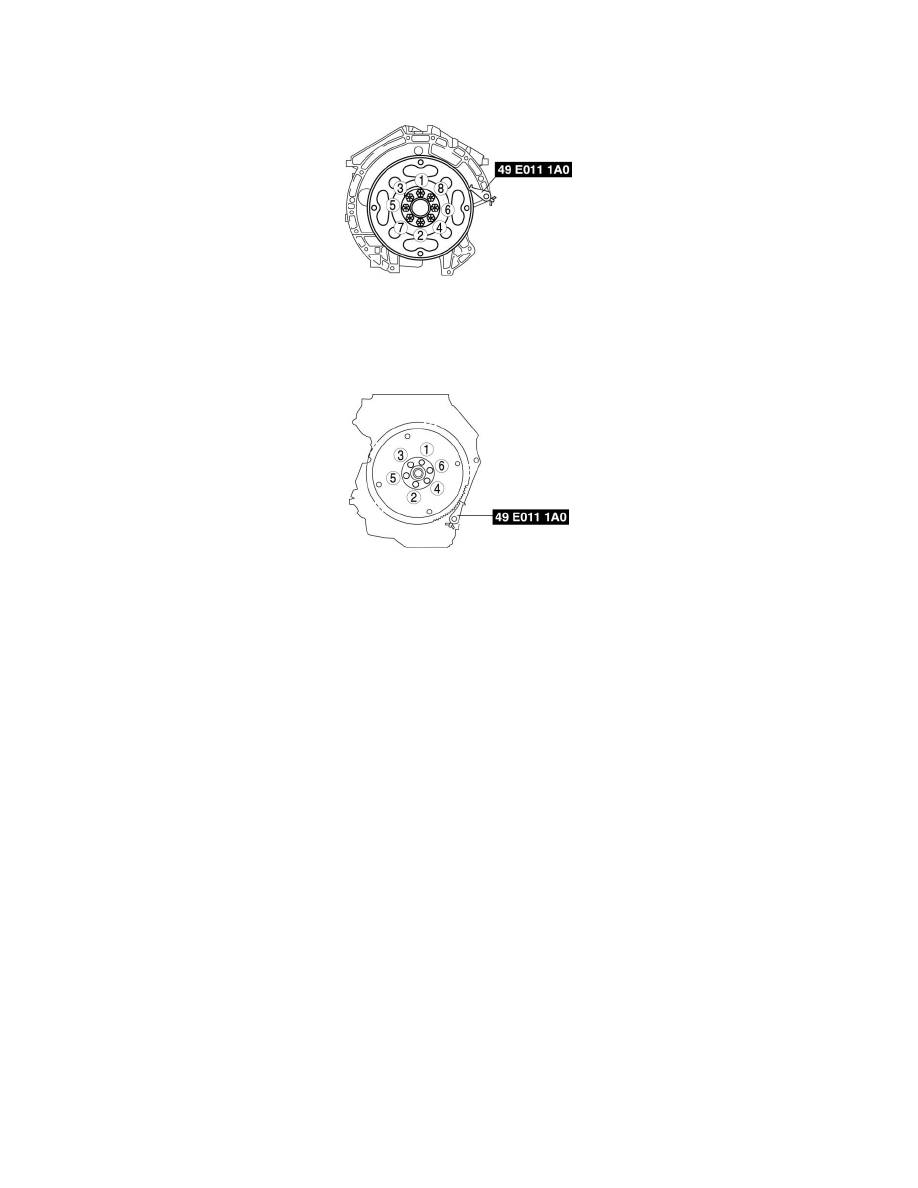

Tighten the new drive plate installation bolts in two or three steps in the order shown.
Tightening torque.......................................................................................................................................................73-87 Nm {7.5-8.8 kgf-m, 54-64 ft-lbf}
FS5A-EL
Tighten the drive plate installation bolts in two or three steps in the order as shown in the figure.
Tightening torque...............................................................................................................................................108-116 Nm {11.1-11.8 kgf-m, 80-85 ft-lbf}
