1997 Villager V6-181 30L SOHC A/T Clutch Service and Repair Guide

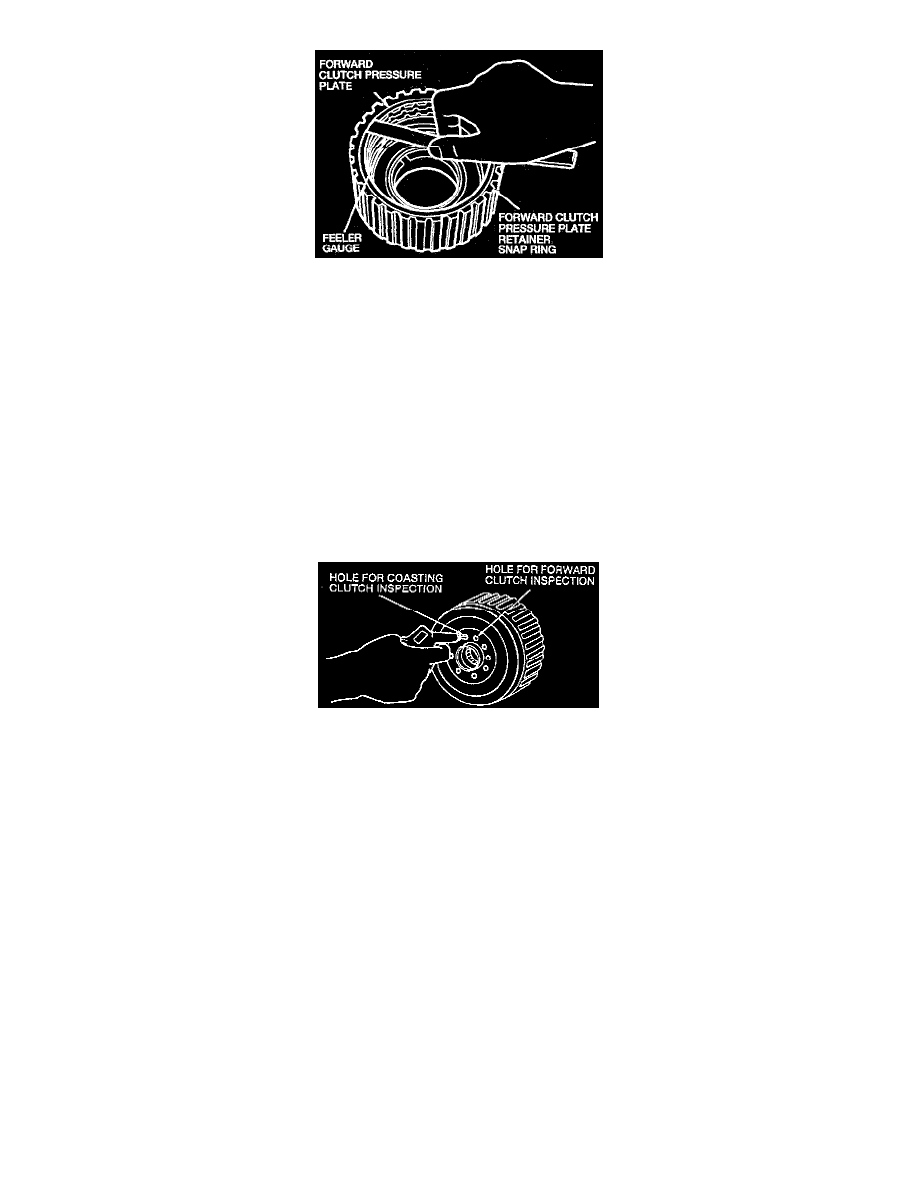

13. Use a feeler gauge to measure the clearance between the forward clutch pressure plate and the forward clutch pressure plate retainer snap ring.
14. The standard clearance is 0.45-0.85 mm (0.0177-0.0335 inch) with a maximum of 1.85 mm (0.0728 inch). If the clearance is not within the
maximum specification, select and insert the proper forward clutch pressure plate from the following chart to obtain the standard clearance.
Forward Clutch Pressure Plate Specifications
Thickness and Part No.
3.2 mm (0.126 inch): F3XY-7B066-G
3.4 mm (0.134 inch): F3XY-7B066-F
3.6 mm (0.142 inch): F3XY-7B066-A
3.8 mm (0.150 inch): F3XY-7B066-B
4.0 mm (0.157 inch): F3XY-7B066-C
4.2 mm (0.165 inch): F3XY-7B066-D
4.4 mm (0.173 inch): F3XY-7B066-E
15. Apply compressed air to the check ball oil hole of the forward clutch cylinder. Make sure the forward clutch pressure plate moves to the forward
clutch pressure plate retainer snap ring.
16. Apply compressed air to the check ball oil hole of the coasting clutch drum. Make sure the coasting clutch pressure plate moves to the coasting
clutch pressure plate retainer snap ring.
Ring Gear, Forward Clutch Hub and Coasting Clutch Hub
