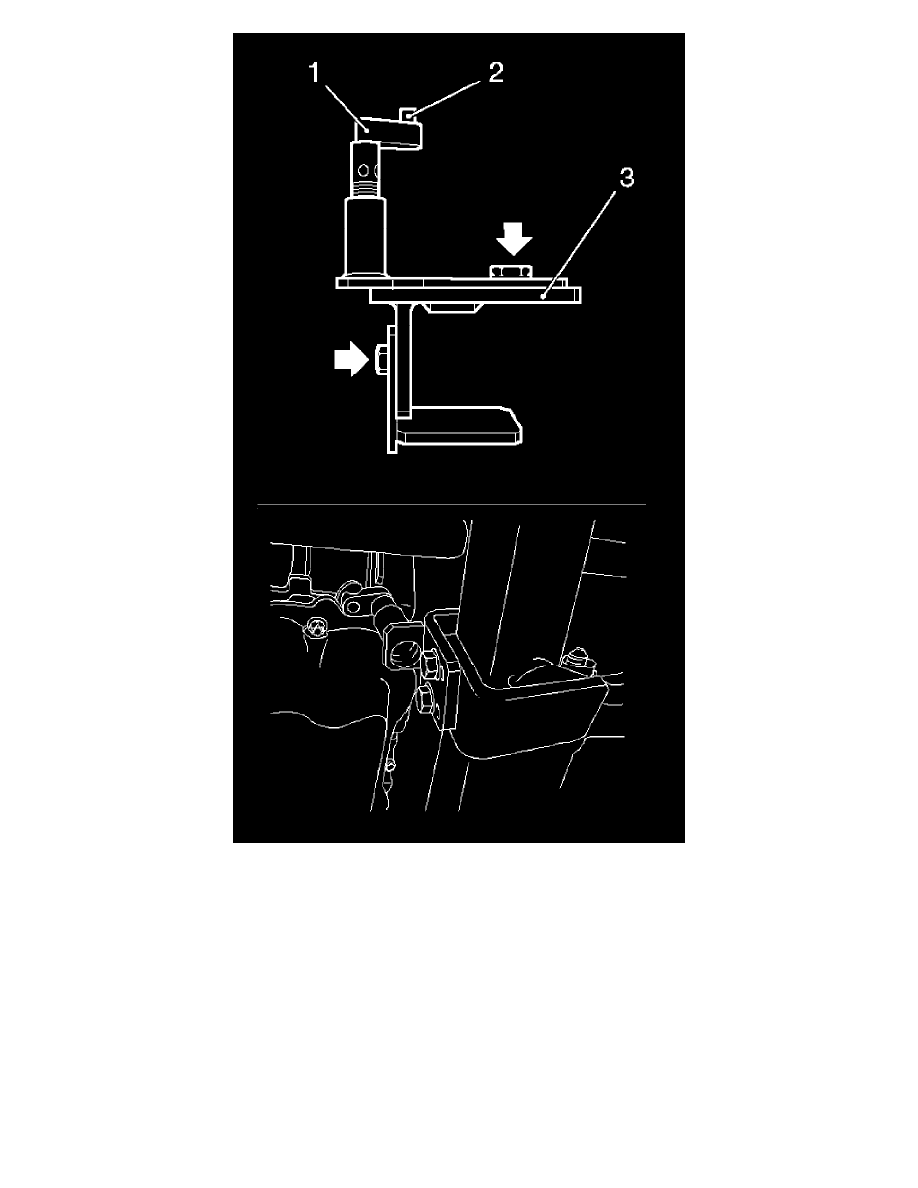

18. Insert KM-6173 Adapter (3).

1. Loosen the 4 bolts (arrows) and hand-tighten.
2. Align KM-6173 at the frame.
3. Position the support bearing (1).
4. Journal (2) must sit in the mount at the cylinder block.
5. Tighten the 4 bolts.
