Gearbox prongs: disassembly and assembly

Make

SEAT

Model

Leon Mk1

Section

02R, 5-speed › Gearbox mechanics,operation, construction,diff. › Gearbox prongs: disassembly and assembly

Power transmissionGearbox prongs: disassembly and assembly

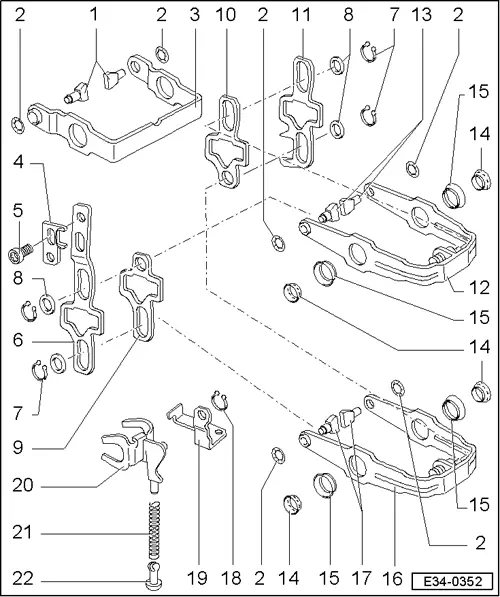

Selector forks - exploded view

1 -	Gearbox selector bolt

q	Identification → Fig.

q	After installing the spring washer, the commutation bolts must be able to move slightly

2 -	Spring washer

q	Remove the spring washer, levering carefully with a screwdriver.

q	Installing → Fig..

q	Always replace.

3 -	5th gear prong

q	Adjustment → Fig.

4 -	Connection opening of 5th gear

5 -

Bolt

q

25 Nm

6 -	Connection guide of 5th gear

7 -

Circlip

8 -

Glass

9 -	Connection guide of 3rd/4th gear

10 -	Connection guide for 1st/2nd gear

11 -	Connection guide for reverse gear

12 -	3rd/4th gear prong

q	With gearbox commutation bolt → Fig.

13 -	Gearbox selector bolt

q	Identification → Fig.

q	After installing the spring washer, the commutation bolts must be able to move slightly

14 -	Ball bearing

15 -	Inner ring of ball bearing

q	removing → Fig.

q	Insertion → Fig.

16 -	1st/2nd gear prong

q	With gearbox commutation pins → Fig.

17 -	Gearbox selector bolt

q	Identification → Fig.

q	After installing the spring washer, the commutation bolts must be able to move slightly

18 -

Circlip

19 -	Reverse gear prong support

20 -	Reverse gear prong

21 -

Spring

22 -	Sliding piece

01 Transmission
