7-speed dual clutch gearbox 0AM (Transmission layout): Technical data

Make
SEAT
Model
Leon Mk1
Section
7-speed dual clutch gearbox 0AM › Technical data › Transmission layout
Power transmissionTransmission layout

Transmission layout

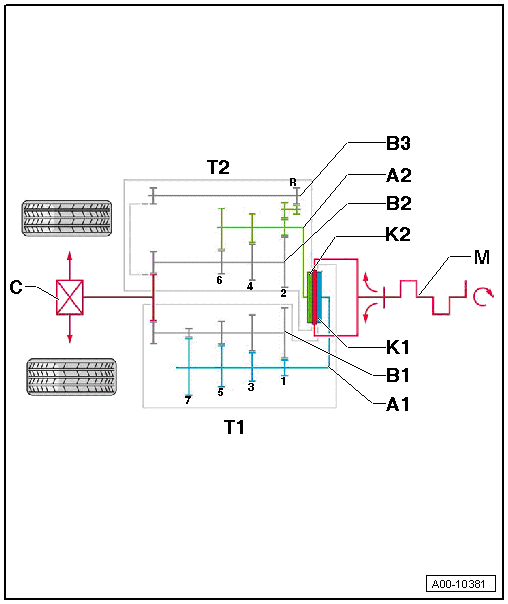

The 7-speed dual clutch gearbox 0AM is equipped with 5 shafts. It contains of two input shafts and three output shafts.
7-speed dual clutch gearbox 0AM (Transmission layout): Technical data – SEAT Leon Mk1
A1  - Input shaft 1
A2  - Input shaft 2
B1  - Output shaft 1
B2  - Output shaft 2
B3  - Output shaft 3
C  - Front final drive
K1  - Dual clutch 1
K2  - Dual clutch 2
M  - Engine
T1  - Gear train half 1
q   With gears 1, 3, 5 and 7
T2  - Gear train half 2
q   With gears 2, 4, 6 and reverse gear R
