Dismantling and assembling clutch housing
- Make
- SEAT
- Model
- Leon Mk2
- Section
- 7-speed dual clutch gearbox 0AM › Gearbox,mechanics,gears,shafts,internal operation › Dismantling and assembling clutch housing
‹ Prev Dismantling and assembling gearbox housingNext › Dismantling and assembling outer input shaft
Power transmissionDismantling and assembling clutch housing

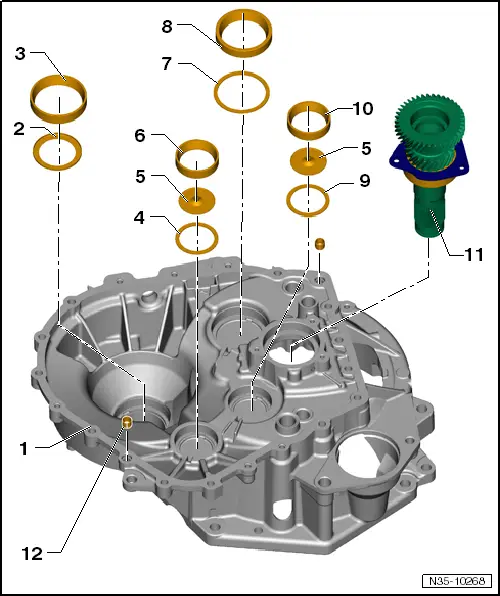

| Dismantling and assembling clutch housing |

| 1 - | clutch housing |
| q | Remove outer input shaft → Chapter |
| 2 - | Retainer washer |
| q | Smooth side faces outwards |
| 3 - | Differential bearing race |
| q | Pressing out → Fig. |
| q | Driving in → Fig. |
| 4 - | Output shaft shim 3 |
| q | Determining thickness → Chapter |
| 5 - | Oil deflector |
| q | Always renew a deformed plate |
| 6 - | Output shaft bearing race 3 |
| q | Remove → Fig. |
| q | Preparing for pressing in → Fig. |
| q | Pressing in output shaft 3 → Fig. |
| 7 - | Output shaft shim 1 |
| q | Determining thickness → Chapter |
| 8 - | Output shaft bearing race 1 |
| q | Remove → Fig. |
| q | Preparing for pressing in → Fig. |
| q | Driving in → Fig. |
| 9 - | Output shaft shim 2 |
| q | Determining thickness → Chapter |
| 10 - | Output shaft bearing race 2 |
| q | Remove → Fig. |
| q | Preparing for pressing in → Fig. |
| q | Pressing in output shaft 2 → Fig. |
| 11 - | Outer input shaft |
| q | Removing → Chapter |
| q | Installing → Chapter |
| q | Dismantling and assembling → Chapter. |
| 12 - | Centring sleeve |
| q | 2 off |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note |
|
|
|
The same page in: Leon Mk1.
