SEAT Leon Mk201 · Power transmission
01 · Transmission

Notes on gearbox disassembly

Make
SEAT
Model
Leon Mk2
Section
7-speed dual clutch gearbox 0AM › Gearbox,mechanics,gears,shafts,internal operation › Notes on gearbox disassembly
Power transmissionNotes on gearbox disassembly
Notes on gearbox disassembly
→ Chapter „Overview: Gearbox disassembly“
Gearbox spare parts are allocated to gearbox code.

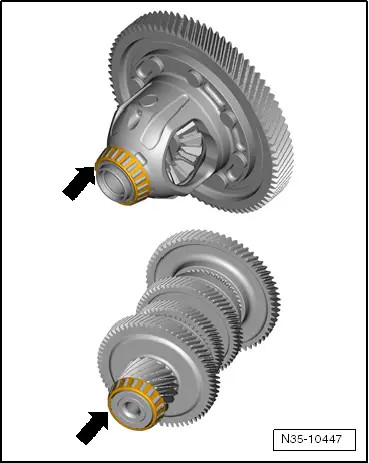

For every installation on shafts, always check »lower« bearing. It is easy for bearing cages to become bent and damaged by »bumping«.
Bearing races are not allowed to be swapped over. They are paired with the bearing.
Always renew the bearings on a shaft together.
–  Install with care, without using force.
  N35-10447
Example:
Always use guide pins -3411- to install differential. Make sure that you do not make contact with the bottom bearings.
  N35-10446
