Fabia Mk1
| Removing and installing parts of the exhaust gas recirculation system |
Note| t | The actuation of the exhaust gas recirculation system is performed by the diesel direct injection system control unit -J248- via the EGR valve -N18- to the mechanical exhaust gas recirculation valve. |
| t | Inspect exhaust gas recirculation and EGR valve -N18-: → 1.9/96 TDI Engine, Fuel Injection; Rep. Gr.23. |
| t | The mechanical exhaust gas recirculation valve with cone-shaped valve plunger makes it possible to achieve different opening cross-sections at different valve strokes. |
| t | Any desired valve position is possible as a result of the pulsed operation. |
| t | Connection diagram for vacuum hoses → Chapter. |
| t | Always replace self-locking nuts. |

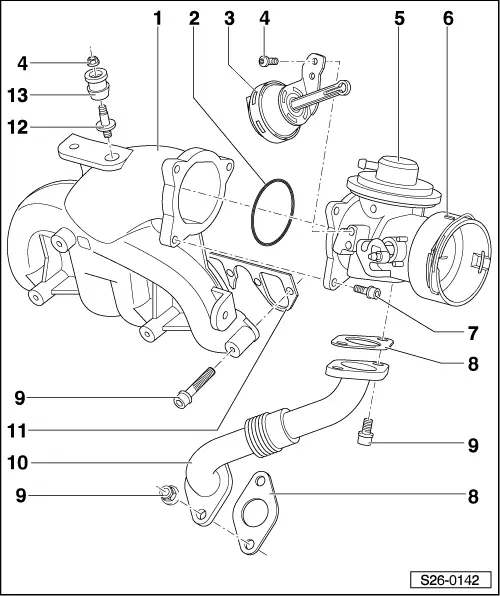

| For engines with engine identification characters ASZ: |
| 1 - | Intake manifold |
| 2 - | O-ring |
| q | replace |
| 3 - | Vacuum setting element |
| 4 - | 5 Nm |
| 5 - | Mechanical exhaust gas recirculation valve |
| q | Part of the induction pipe |
| q | Must be replaced together with the induction pipe |
| q | check → Chapter |
| 6 - | Induction pipe |
| q | With mechanical exhaust gas recirculation valve and control flap |
| 7 - | 10 Nm |
| 8 - | Gasket |
| q | replace |
| 9 - | 25 Nm |
| 10 - | Connecting part |
| 11 - | Gasket |
| q | replace |
| q | Check fitting position |
| 12 - | 6 Nm |
| 13 - | Grommet |

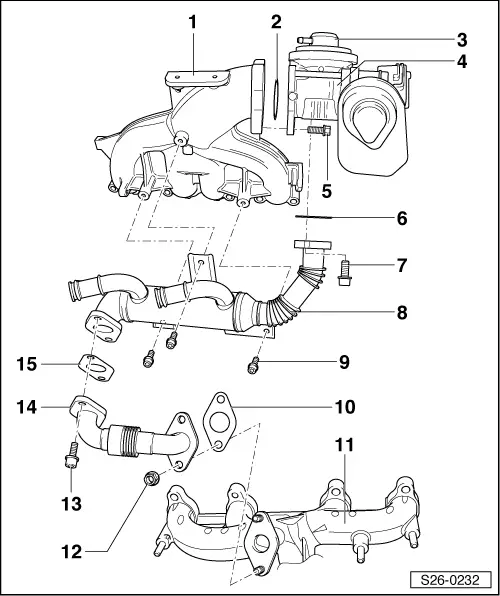

| For engines with engine code BLT: |
| 1 - | Intake manifold |
| 2 - | O-ring |
| q | replace |
| 3 - | Mechanical exhaust gas recirculation valve |
| q | Part of the induction pipe |
| q | Must be replaced together with the induction pipe |
| q | check → Chapter |
| 4 - | Induction pipe |
| q | With mechanical exhaust gas recirculation valve and control flap |
| 5 - | 10 Nm |
| 6 - | Gasket |
| q | replace |
| 7 - | 25 Nm |
| 8 - | Exhaust gas recirculation radiator |
| 9 - | 10 Nm |
| 10 - | Gasket |
| q | replace |
| 11 - | Exhaust manifold |
| 12 - | 25 Nm |
| q | replace |
| q | coat thread with hot screw paste -G 052 112 A3- before installing |
| 13 - | 25 Nm |
| 14 - | Connecting pipe |
| 15 - | Gasket |
| q | replace |
