Removing and installing the spray nozzles for windscreen washer system
Removing and installing the spray nozzles for windscreen washer system
Removing and installing the spray nozzles for windscreen washer system
Removing
–
Remove wiper arm
→ Chapter
.
–
Removing scuttle
→ Body Work; Rep. Gr.66
.
–

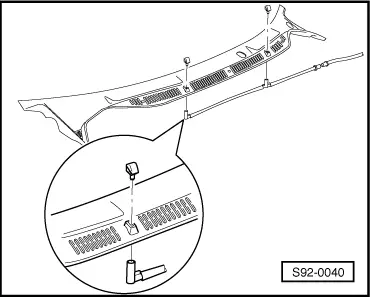

Carefully lever the angled pieces off the spray nozzles from below and lift the nozzles up and out.
Note
The spray nozzles cannot be adjusted.
Install
–
Installation is carried out in the reverse order.
