Fabia Mk2
|

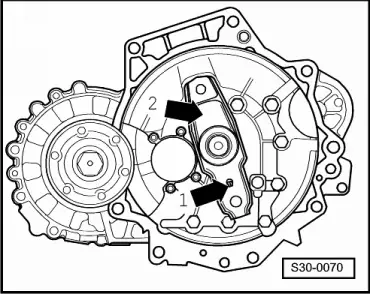

| 1 - | Gearbox |
| 2 - | Ball stud, 25 Nm |
| q | remove previous grease from the contact surface of the release lever |
| q | grease with grease for plug serration of clutch disc -G 000 100- |
| 3 - | Gasket ring for drive shaft |
| q | fitted in guide bushing Pos. 4 |
| q | replace → Chapter |
| q | Fill half the space between the sealing lips and dust lips with sealing grease -G 052 128 A1- |
| 4 - | Guide bushing |
| q | with vulcanized O-ring |
| q | if O-ring is damaged, replace guide bushing together with O-ring → Chapter |
| q | for removal, remove clutch release lever Pos. 7 |
| q | grease in the area of the clutch release lever with grease for plug serration of clutch disc -G 000 100 - |
| 5 - | Retaining spring |
| q | attach to clutch release lever |
| 6 - | 20 Nm |
| 7 - | Clutch release lever |
| q | remove and install → Fig. together with clutch release bearing Pos. 8 |
| q | remove previous grease from the contact surface of the clutch release lever |
| q | Grease contact point on the ball stud with grease for plug serration of clutch disc -G 000 100- |
| 8 - | Release bearing |
| q | Do not wash the bearing, just wipe clean |
| q | replace noisy bearings |
| q | removing and installing → Fig. |
| q | Grease contact point on the clutch release lever with grease for plug serration of clutch disc -G 000 100 - |
| 9 - | Slave cylinder |
| q | removing and installing → Chapter |
| q | Grease tappet head with grease for plug serration of clutch disc -G 000 100- |
| 10 - | 20 Nm |
| 11 - | Mounting bolt |
| q | secures the clutch release lever when installing the gearbox → Chapter |
| q | unscrew after the gearbox has been fitted → Chapter |
Note| If a mounting bolt is not provided, use bolt M8 x 35. |
|
|
