Disassembling and assembling the drive shaft

Make
Skoda
Model
Octavia Mk1
Section
Gearbox 002 › Gearbox,mechanics,gears,shafts,internal operation › Disassembling and assembling the drive shaft
Power transmissionDisassembling and assembling the drive shaft
Disassembling and assembling the drive shaft
Special tools and workshop equipment required
t  Pressure plate -MP3-406 (VW 401)-
t  Pressure plate -MP3-407 (VW 402)-
t  Thrust piece -MP3-411 (VW 454)-
t  Pressure spindle -MP3-448 (VW408A)-
t  Pipe section -MP3-450 (VW415A)-
t  Pipe section -MP3-451 (VW422)-
t  Thrust piece -MP3-4014 (VW432)-
t  Separating device -Kukko 17/1-
t  Separating device -Kukko 17/2-
t  Workshop press, e.g. workshop press -V.A.G 1290A-
Disassembling and assembling the drive shaft – Skoda Octavia Mk1  Note
When installing new pinions observe the technical data → Chapter.

Disassembling and assembling the drive shaft – Skoda Octavia Mk1

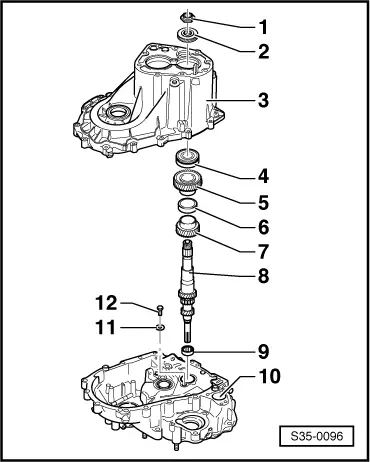

1 - Nut, 60 Nm
q   always replace → Electronic Catalogue of Original Parts
q   to release or tighten the nuts observe mounting sequence → Chapter
2 - 5th gear pinion
q   removing and installing → Chapter
3 - Gearbox housing
4 - Grooved ball bearing
q   pressing off → Fig.
q   pressing on → Fig.
5 - 4th gear pinion
q   pressing off → Fig.
q   pressing on → Fig.
q   Collar points to the 3rd gear
6 - Distance sleeve
7 - 3rd gear pinion
q   pressing off → Fig.
q   pressing on → Fig.
q   Collar points to the 4th gear
8 - Drive shaft
9 - Cylindrical-roller bearing
q   pressing out → Fig.
q   installing → Fig.
q   Fitting position: the marking on the bearing points upwards → Fig.
10 - Clutch housing
11 - Washer
12 - Screw, 10 Nm


Press off grooved ball bearing
-A- Separating device 12...75 mm, e.g. separating device -Kukko 17/1-
  S35-0097
Press on grooved ball bearing
Fitting position:
Groove of circlip points towards nut thread.
  S35-0101
Pressing out 4th gear pinion
–  Press out 4th gear pinion with commercially available workshop press -V.A.G 1290A-.
  S35-0105
Pressing off 3rd gear pinion
–  Press out 3rd gear pinion with commercially available workshop press -V.A.G 1290A-.
   -A- Separating device 22...115 mm, e.g. separating device -Kukko 17/2-
  S35-0098

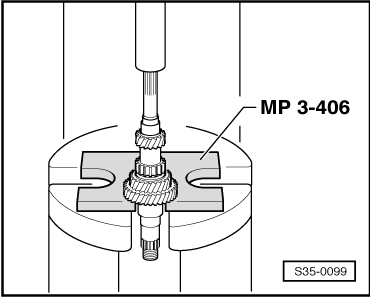

Heat 3rd gear pinion to approx. 100°C and press on.
Collar points to the 4th gear.
  S35-0099
Heat 4th gear pinion to approx. 100°C and press on.
–  First insert distance sleeve.
   Collar points to the 3rd gear.
  S35-0100

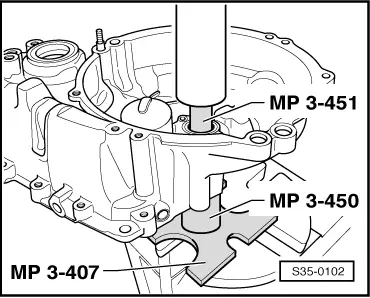

Press the cylindrical-roller bearing out of the clutch housing
–  Support the clutch housing with a pipe section -MP3-450 (VW 415A)- directly below the bearing support.
  S35-0102

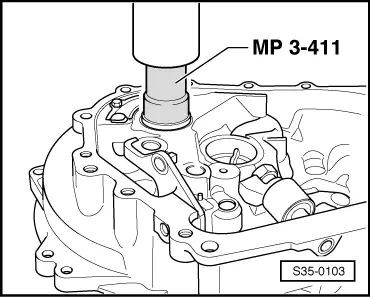

Press the cylindrical-roller bearing into the clutch housing
–  Support the clutch housing by positioning the pressure plate -MP3-4014 (VW 432)- (not visible in figure) directly under the bearing support.
  S35-0103
