Roomster

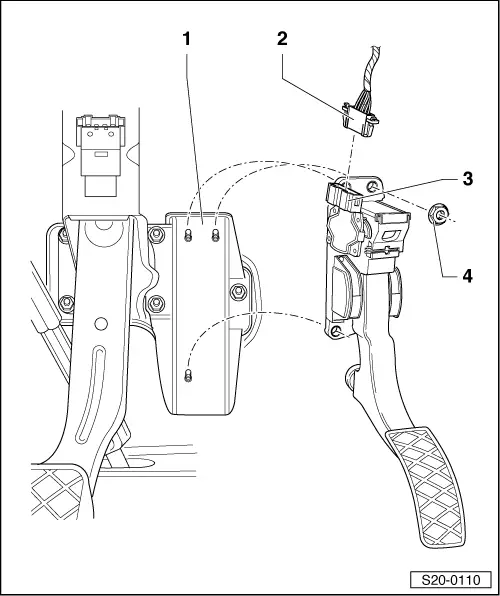

| Summary of components of accelerator pedal module |
| 1 - | Bearing bracket |
| q | removing and installing → Chassis; Rep. Gr.46 |
| 2 - | Connector |
| q | black |
| q | 6-pin |
| 3 - | Accelerator pedal module |
| q | with accelerator pedal position sender -G79- and accelerator pedal position sender 2 -G185- |
| q | to remove the sender remove the bottom part of the dash panel on the driver's side |
| 4 - | 10 Nm |
