Superb

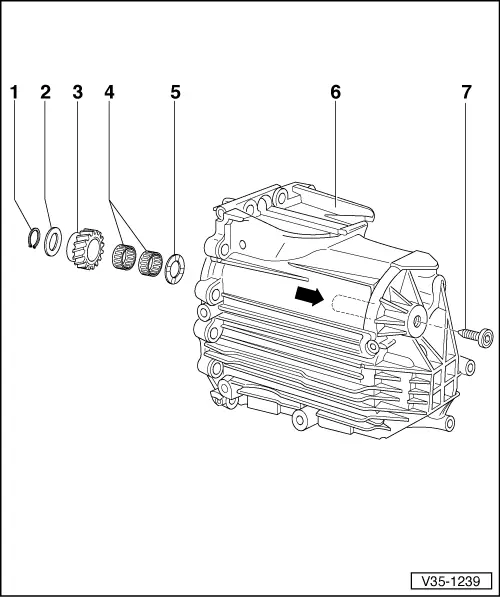

| Removing and installing reverse gear |
| 1 - | Circlip |
| 2 - | Support plate |
| 3 - | Reverse gear wheel |
| q | different versions → Fig., assignment → Electronic Catalogue of Original Parts |
| 4 - | Needle bearing |
| 5 - | Thrust washer |
| 6 - | Gearbox cover |
| q | made out of aluminium, must only be fitted with gearbox housing out of aluminium |
| q | made out of magnesium, must only be fitted with gearbox housing out of magnesium |
| q | with shaft for reverse gear -arrow- |
| q | the shaft for reverse gear must not be removed in order to remove the reverse gear |
| q | the shaft for reverse gear is not supplied as a spare part |
| 7 - | Screw |
| q | used for additionally securing the shaft for reverse gear |
| q | Screw made out of various materials for gearbox made out of aluminium and magnesium |
| q | assign → Electronic Catalogue of Original Parts |
| q | for gearboxes made out of aluminium, 35 Nm |
| q | for gearboxes made out of magnesium, 25 Nm |
|
|
| A | Reverse gear wheel with chamfer | both types of sliding sleeves (with chamfer or with large shoulder) can be fitted |
| B | Reverse gear without chamfer | only sliding sleeves with large shoulder and not sliding sleeves with chamfer can be fitted |
