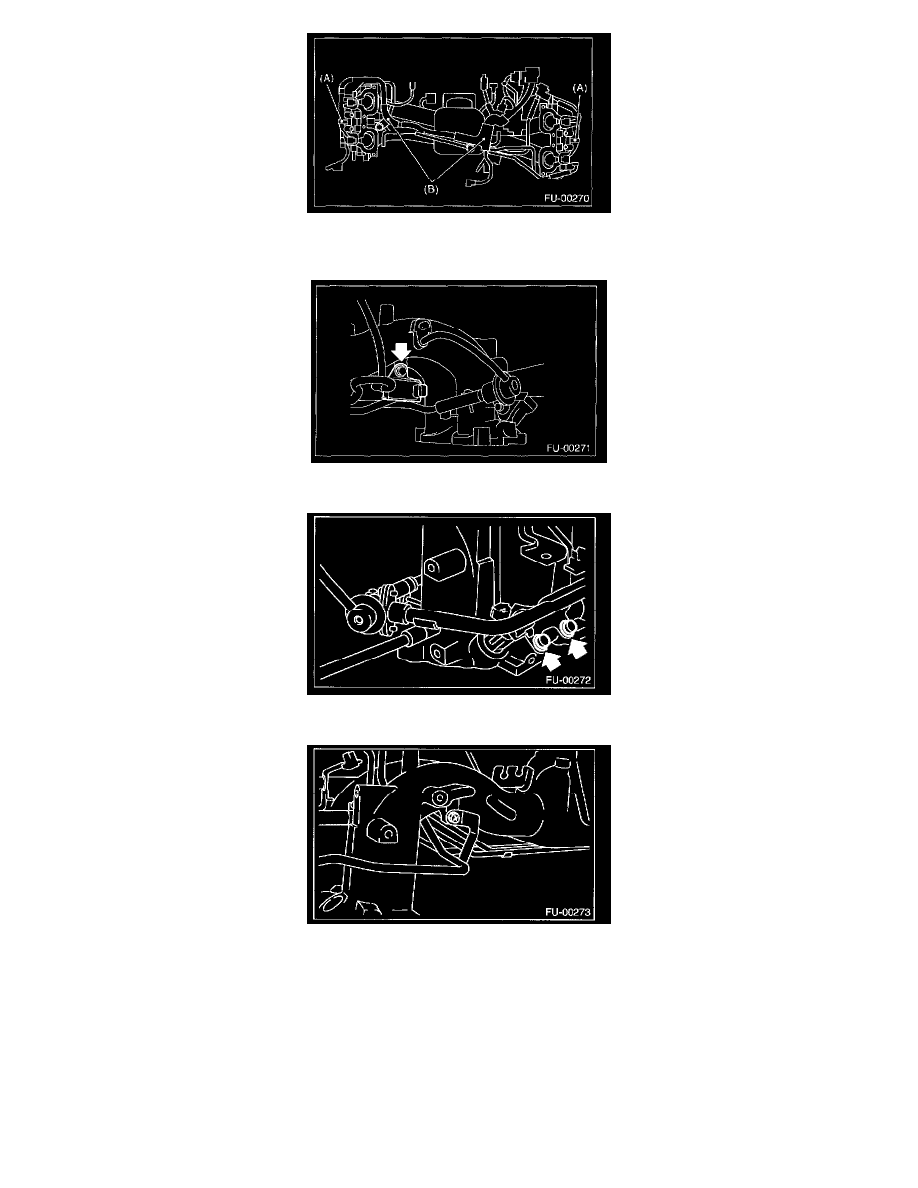

12. Remove the harness bands (A) and harness bracket (B) which hold engine harness onto the intake manifold.
13. Remove the engine harness from the intake manifold.

14. Remove the purge control solenoid valve.

15. Remove the bolt which installs injector pipe on the intake manifold as shown in figure.

16. Remove the bolt which installs injector pipe on the intake manifold.
