Engine Block Disassemble


           2191198


1. Remove the 2 transmission locating pins (1).
2. Remove the 2 lower crankcase location pins (2).

           2191200


3. Remove the 2 cylinder head location pins (1).

           2191201


4. Remove the 7 engine block core hole plugs (1).

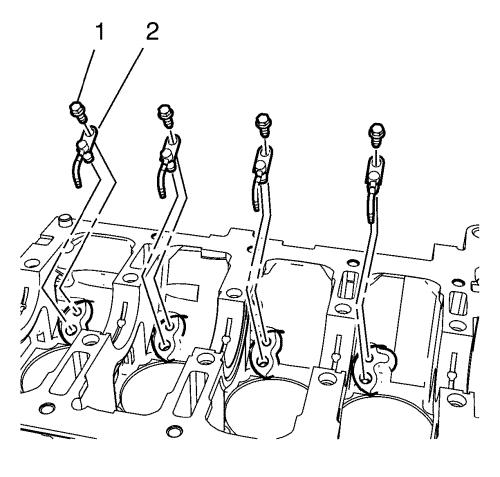

           2191202


5. Remove the 4 piston oil nozzle bolts (1).
6. Remove the 4 piston oil nozzles (2).
