Astra J
Engine
Engine mechanics - 1.3L Diesel / Repair Instructions
Throttle Body Assembly Removal
Throttle Body Assembly Removal

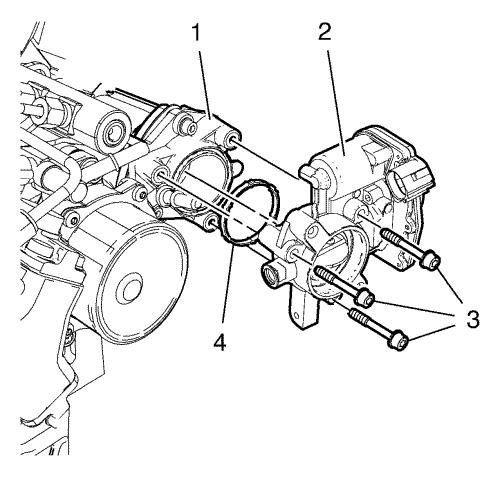

1.
Remove the 3 throttle body bolts (3).
2.
Remove the throttle body (2) from the throttle body adapter (1).
3.
Remove the throttle body gasket (4).
