Astra J
Engine
Engine mechanics - 1.3L Diesel / Repair Instructions
Inlet Manifold Removal

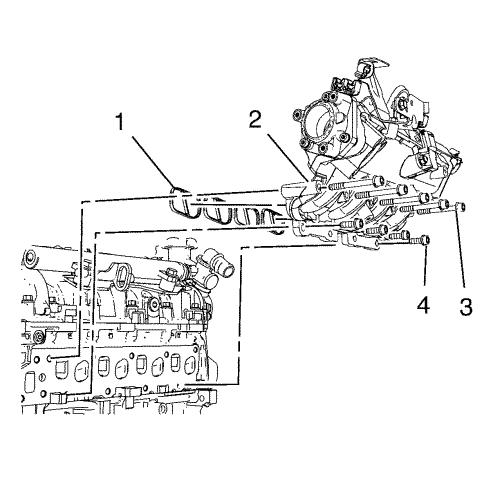

Intake Manifold Removal
1.
Remove the 5 intake manifold upper bolts (3).
2.
Remove the 4 intake manifold lower bolts (4).
3.
Remove the intake manifold (2).
4.
Remove the 4 intake manifold gaskets (1).
