Fuel Injection Pump Removal (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Fuel Injection Pump Removal

EngineFuel Injection Pump Removal

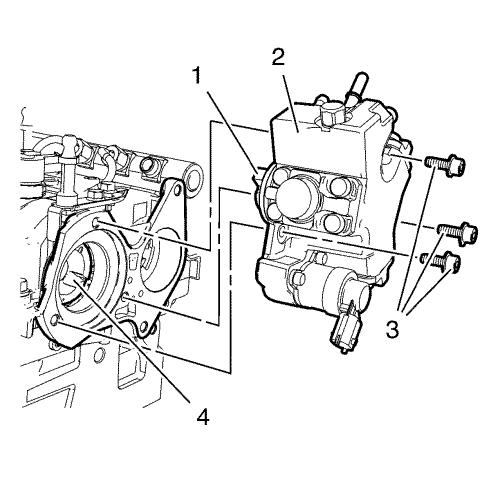

Fuel Injection Pump Removal            1. Remove the 3 fuel injection pump bolts (3). 2. Remove the fuel injection pump (2) Note:  Do not tilt the fuel injection pump actuator (1) at the timing gear groove (4). 3. Remove the fuel injection pump seal.
