Piston and Connecting Rod Disassemble (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Piston and Connecting Rod Disassemble

EnginePiston and Connecting Rod Disassemble

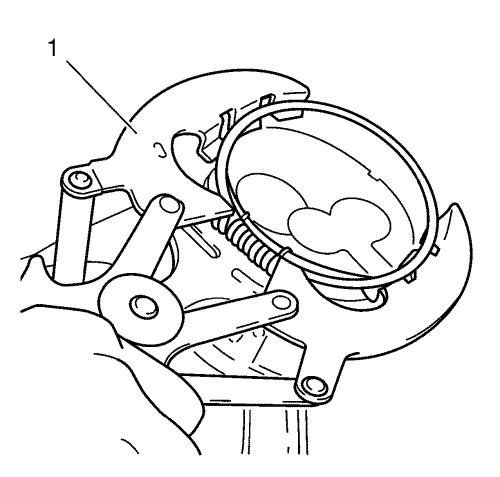

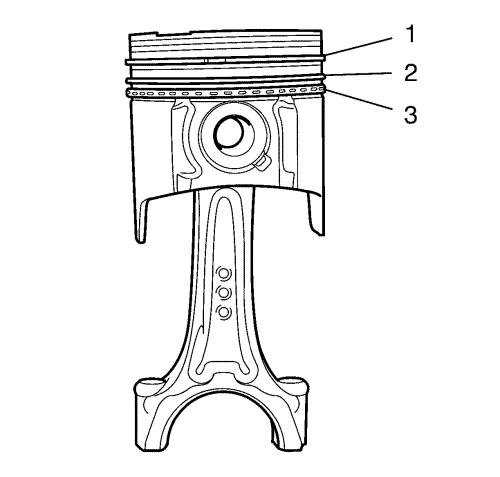

Piston and Connecting Rod Disassemble            1. Remove the piston rings. Use a piston ring plier (1).            2. The piston rings are ordered as followed:   •  Upper compression ring (1)   •  Lower compression ring (2)   •  Oil ring (3)            Note:  Clamp the connecting rod. 3. Remove the 2 piston pin retainer (1). 4. Remove the piston pin (2). 5. Remove the piston (3) from the connecting rod (4).
