Astra J
Engine
Engine mechanics - 1.3L Diesel / Repair Instructions
Turbocharger Installation
Turbocharger Installation

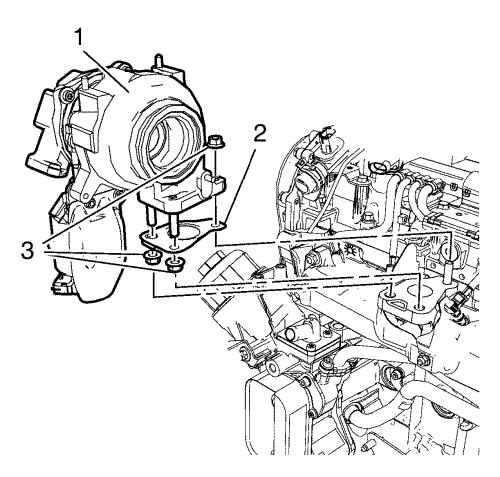

1.
Install a NEW turbocharger gasket (2).
2.
Install the turbocharger (1) to the exhaust manifold.
Caution:
Refer to
Fastener Caution
.
Note:
Coat the thread with assembly paste.
3.
Install the 3 turbocharger nuts (3) and tighten to
25 N·m (18 lb ft)
.
