Camshaft Sprocket Installation (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Camshaft Sprocket Installation

EngineCamshaft Sprocket Installation

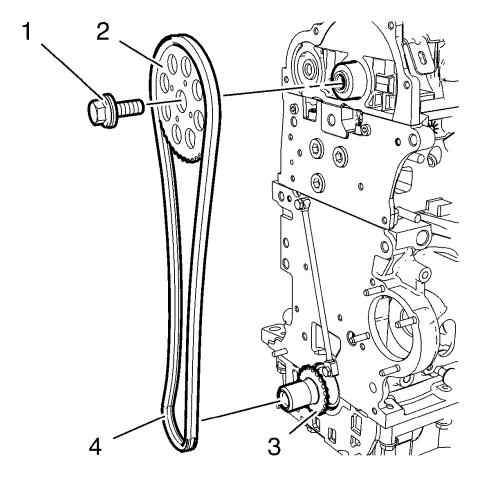

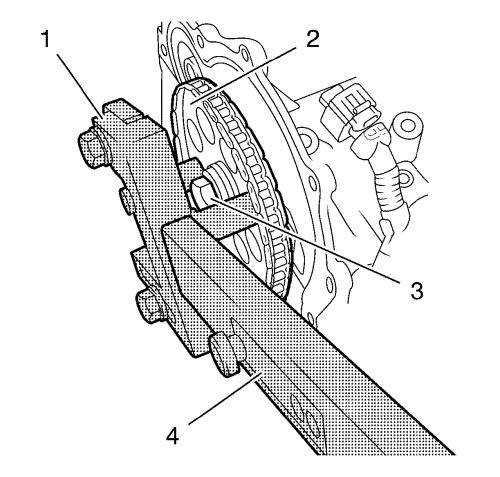

Camshaft Sprocket Installation Special Tools •  EN-956-1   Extension •  EN-6347   Holder For equivalent regional tools, refer to Special Tools .            Note:  Install the timing chain to the crankshaft sprocket (3) at first. 1. Install the camshaft sprocket (2) along with the timing chain (4). 2. Install the camshaft sprocket bolt (1).            3. Install the EN-6347   holder (1) with the EN-956-1   extension (4) to the camshaft sprocket (2). Caution: Refer to Fastener Caution 4. Tighten the camshaft sprocket bolt (3) to 150 N·m (111 lb ft) Note:  Counterhold the camshaft sprocket with the EN-6347   holder and the EN-956-1   extension . 5. Remove the EN-6347   holder with the EN-956-1   extension from the camshaft sprocket.
