Exhaust Manifold Removal (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Exhaust Manifold Removal

EngineExhaust Manifold Removal

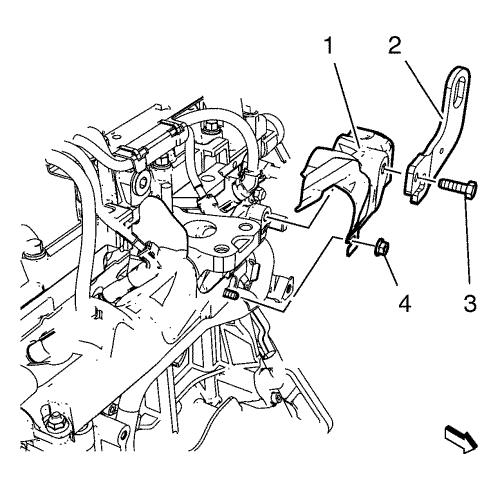

Exhaust Manifold Removal            1. Remove the engine lift front bracket bolt (3). 2. Remove the engine lift front bracket (2). 3. Remove the exhaust manifold heat shield left side nut (4). 4. Remove the exhaust manifold heat shield left side (1).            5. Remove the exhaust manifold heat shield right side nut (1). 6. Remove the exhaust manifold heat shield right side (2).            7. Remove the 10 exhaust manifold nuts (3). 8. Remove the exhaust manifold (2). 9. Remove the exhaust manifold gasket (1).
