Engine mechanics - 1.3L Diesel (Sump Installation): Repair Instructions

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Sump Installation

EngineSump Installation

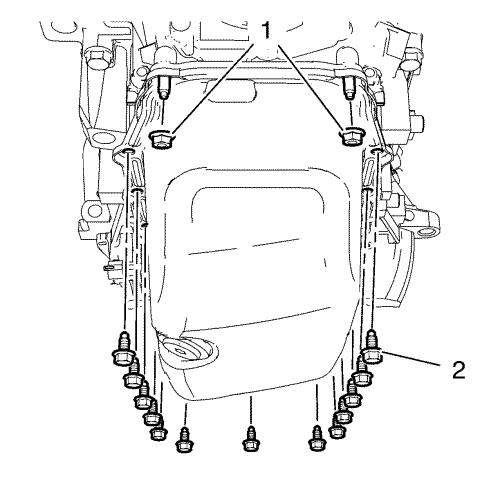

Oil Pan Installation 1. Clean the sealing surfaces.            Note:  The complete installation procedure of the oil pan should be done in 10 minutes. 2. Apply silicone sealing compound (2) to the oil pan sealing surface (1). The thickness of the sealing bead (1) should be 3.0 - 4.0 mm (0.118 - 0.157 in).            3. Install the oil pan (1).            4. Hand tighten the 2 oil pan nuts (1). 5. Hand tighten the 13 oil pan bolts (2). Caution: Refer to Fastener Caution            6. Tighten the 13 oil pan bolts and the 2 oil pan nuts in sequence as shown:   •  Tighten in first step to 4 N·m (35 lb in) .   •  Tighten in second step to 9 N·m (80 lb in) .            7. Install the transmission support brace (1). 8. Install the 4 transmission support brace bolts (2) and tighten to 30 N·m (22 lb ft) .            Note:  For vehicles with air conditioning 9. Install the air conditioning compressor bracket (1). 10. Install the 4 air conditioning compressor bracket bolts (2) and tighten to 22 N·m (16 lb ft)

11 Engine
