EngineVacuum Pump Removal

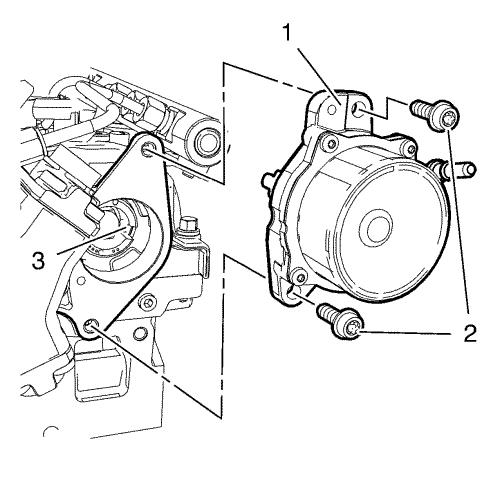

Vacuum Pump Removal            1. Remove the 2 vacuum pump bolts (2). 2. Remove the vacuum pump (1). Note:  Do not tilt the vacuum pump actuator at the timing gear groove (3). 3. Remove the vacuum pump gasket.
